Product Detailed Parameters

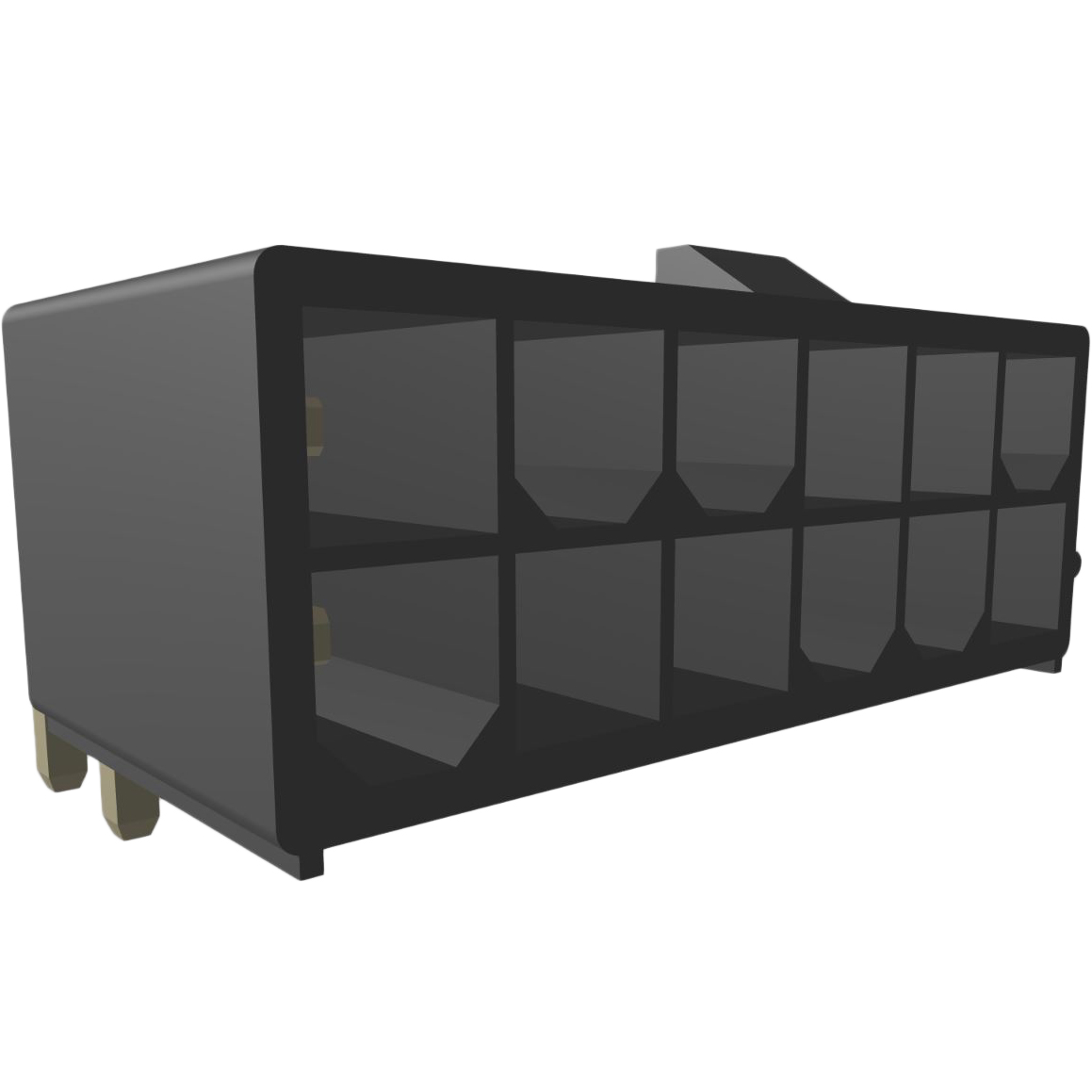

- Description：CONN HEADER R/A 12POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray,Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview
The Amphenol ICC (FCI) part number 10131318-12121G0LF is a Minitek Power4.2 series power-to-board header connector. It features a 4.2mm pitch, two rows, and twelve positions. The contacts are gold-plated copper with a 30-microinch finish. Rated for 12.5A per contact, it supports vertical installation via solder termination. The housing is black thermoplastic, operating between -40°C and +105°C.
Feature Summary
- High current capacity of 12.5A per contact for power distribution
- Gold plating on contacts ensures reliable conductivity
- Vertical board mount design for space-efficient integration
Applications
- Power supply input connections
- Board-to-board power distribution
- Industrial equipment power interfaces
Procurement Notes
Verify the specific suffix G0LF against official Amphenol documentation to confirm the exact plating thickness and housing color variant. Ensure the ordering code matches the required pin count and row configuration. Cross-reference the datasheet for mating partner compatibility and verify RoHS compliance status prior to procurement.
Selection Notes
Select this component when high current handling is required in a compact form factor. The 4.2mm pitch allows for robust contact spacing compared to signal connectors. Verify that the PCB layout accommodates the vertical height and solder tail dimensions. Confirm thermal management requirements align with the 12.5A rating under expected ambient conditions.
Part Context
This connector belongs to the Minitek Power4.2 family, designed for demanding power applications. The series offers various configurations to support different current loads and mounting styles. It is engineered for durability in industrial and commercial environments requiring stable power delivery.
Replacement Considerations
Compatible substitutes within the same Minitek Power4.2 series include 10131319-12421G0LF for vertical orientation variations or other pin counts. Ensure mechanical footprint and electrical ratings match before substitution.
