10131318-1221100LF

Description：CONN HEADER R/A 12POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:c71e15e4f05c Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 12POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.404" (10.26mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：80.0µin (2.03µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10131318-1221100LF

Overview

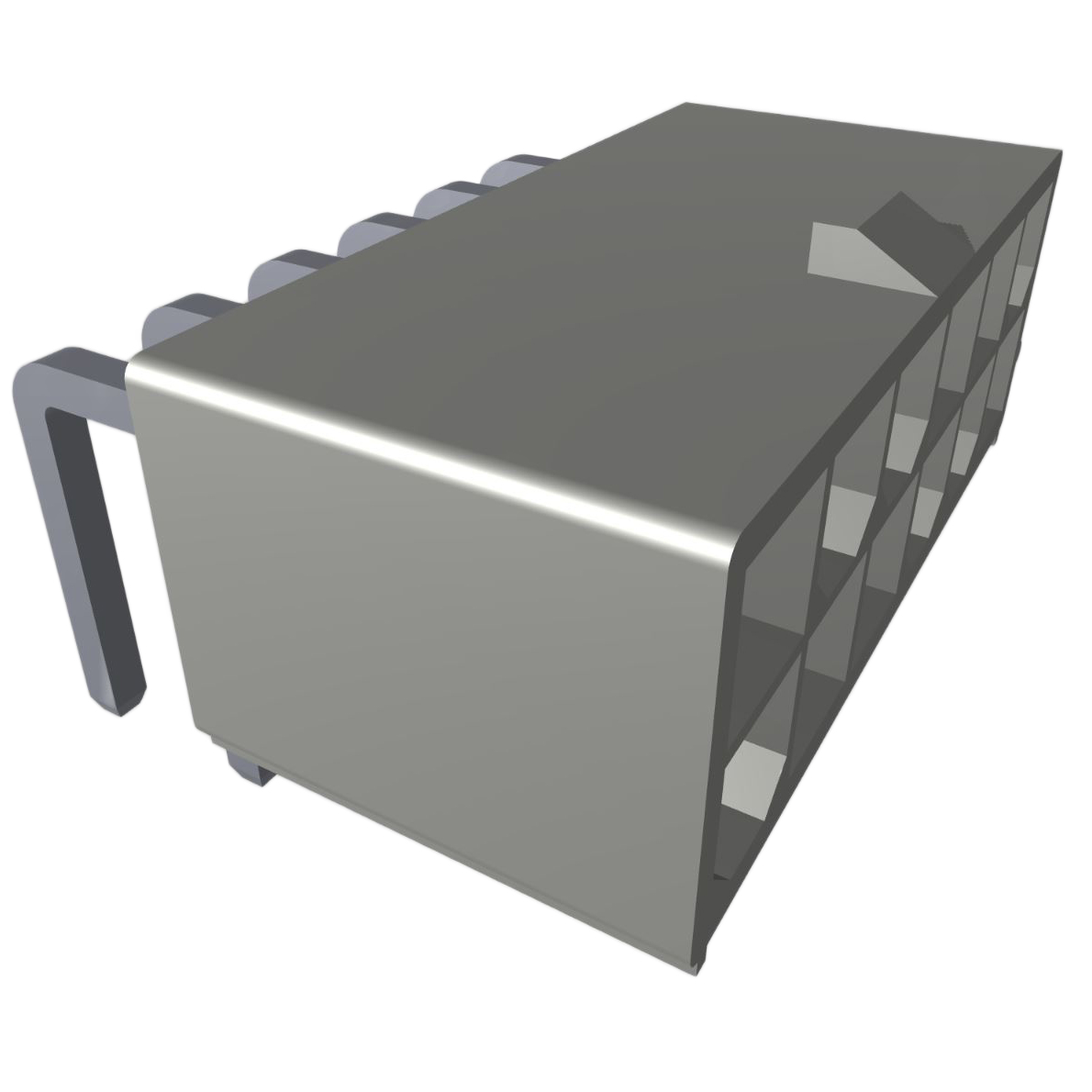

The Amphenol ICC (FCI) part number 10131318-1221100LF is a Minitek Power4.2 series power connector header designed for board-to-board applications. It features a 12-position configuration with a 4.2 mm pitch and operates at a current rating of 12.5 A and voltage rating of 600 VAC. The component utilizes copper contacts with tin plating, housed in a black nylon 6.6 insulator. It employs a right-angle through-hole solder termination style and supports a dual-row arrangement. The unit functions within an operating temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhms.

Feature Summary

Right-angle through-hole mounting design for efficient PCB layout integration
Dual-row header configuration providing high-density power distribution
Robust construction using nylon 6.6 housing and tin-plated copper contacts

Applications

Server and storage equipment power distribution
Telecommunications infrastructure board connections
Industrial control system power headers

Procurement Notes

Verify the specific ordering suffix 'LF' indicates lead-free compliance as per manufacturer standards. Confirm that the right-angle orientation matches the target PCB footprint requirements. Ensure the 12.5 A current rating aligns with the circuit load specifications. Cross-reference the datasheet for precise mechanical dimensions before finalizing procurement orders.

Selection Notes

Select this component when a right-angle power header is required for high-voltage applications up to 600 VAC. The 4.2 mm pitch allows for substantial current carrying capacity compared to smaller signal connectors. Consider the black nylon 6.6 material for thermal stability and the tin plating for general-purpose soldering reliability in industrial environments.

Part Context

This connector belongs to the Minitek Power4.2 family, which provides modular solutions for parallel, perpendicular, and coplanar board-to-board connections. The series is engineered for durability in demanding environments, offering reliable electrical performance for power delivery in data processing and communication hardware systems manufactured by Amphenol FCI.

Replacement Considerations

Compatible substitutes within the same Minitek Power4.2 series include variants with different pin counts or termination styles, such as the 10131318-105210PLF for right-angle configurations with differing positions. Verify mechanical compatibility and electrical ratings before substituting any alternative part numbers from the manufacturer's catalog.
