Product Detailed Parameters
- Description：CONN HEADER R/A 12POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

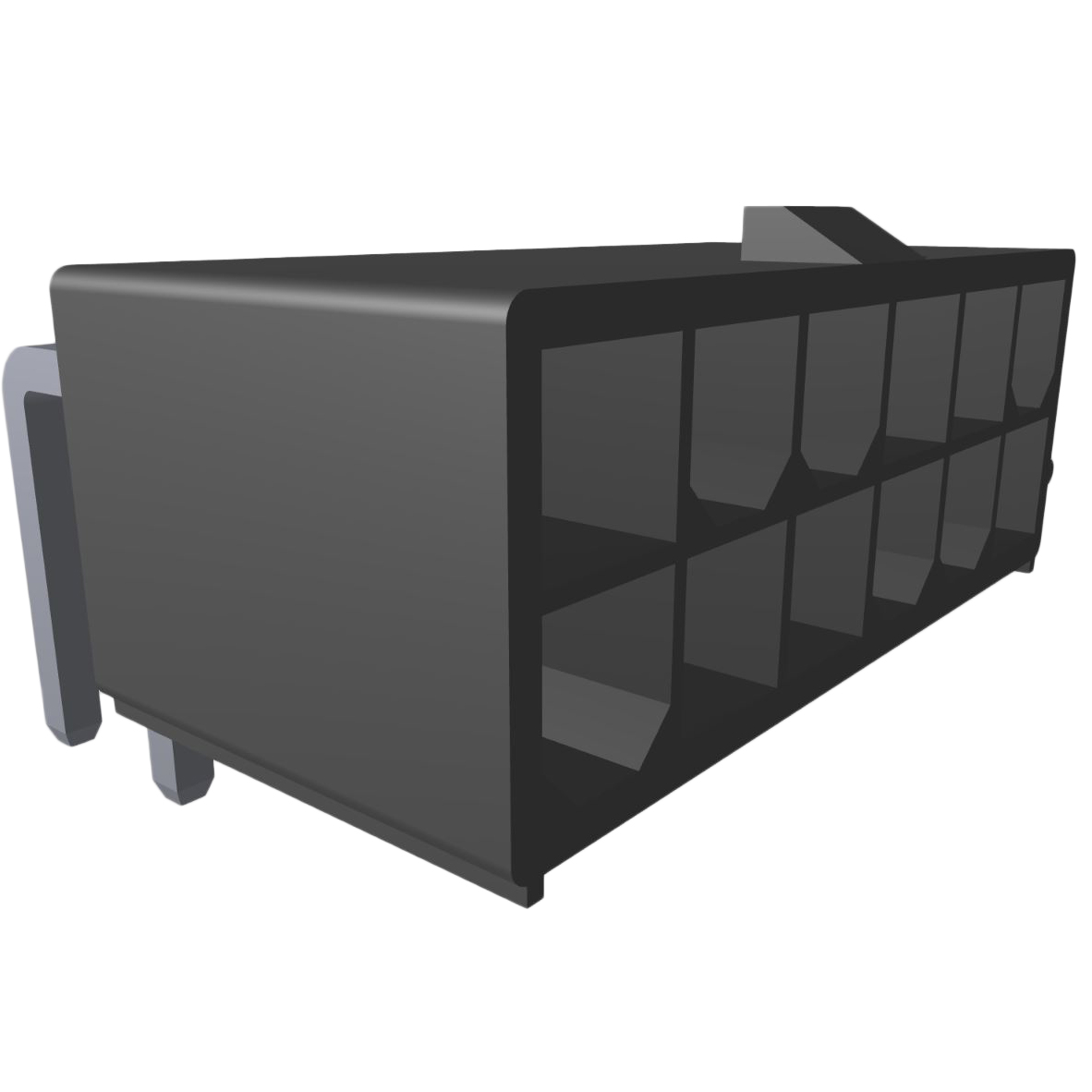

The Amphenol ICC (FCI) part number 10131318-12221G0LF is a Minitek Power4.2HCC double-row right-angle header with 12 positions and a 4.2 mm pitch. It features copper contacts plated with 30-micron gold, a black housing, and a 12.5 A current rating. Designed for power-to-board applications, it operates between -40°C and +105°C with an insulation resistance of 1 GOhms.
Feature Summary
- Double-row right-angle through-hole mounting configuration
- Gold-plated copper contacts for reliable conductivity
- High current capacity suitable for power distribution
Applications
- Power distribution in server systems
- Storage system interconnects
- Networking equipment power interfaces
Procurement Notes
Verify the specific ordering suffix to confirm contact plating thickness and housing color variations. Confirm lead times as factory special orders may apply. Ensure compatibility with mating receptacles within the Minitek Power4.2 series before finalizing procurement.
Selection Notes
Select this component for high-density power connections requiring right-angle board layout. The 4.2 mm pitch accommodates higher currents compared to smaller pitches. Verify that the PCB footprint matches the specified double-row right-angle header dimensions.
Part Context
This connector belongs to the MinitekPwr 4.2 series by Amphenol FCI, designed for robust power delivery. It complements other variants in the family offering different pin counts and orientations while maintaining consistent electrical ratings and mechanical reliability standards.
Replacement Considerations
Compatible substitutes include 10131318-08221G0LF (8-position) and 10131318-16221G0LF (16-position). Ensure identical pitch, row count, and termination style when evaluating alternatives.
