Product Detailed Parameters
- Description：CONN HEADER R/A
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

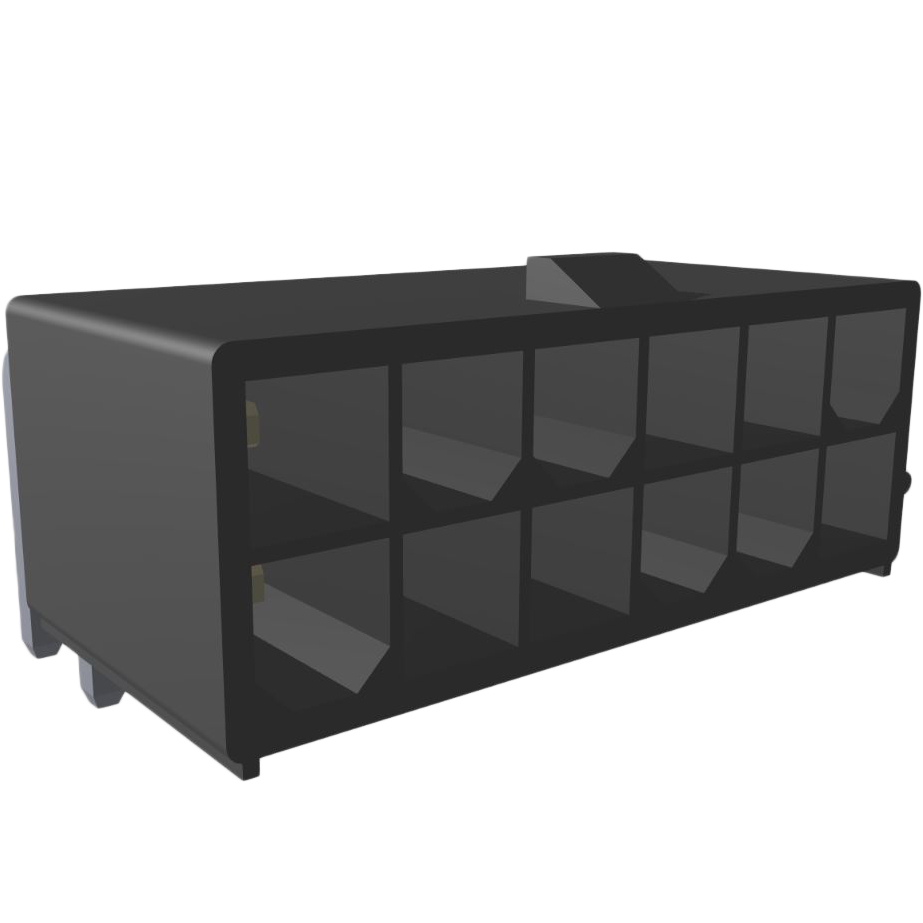

The Amphenol ICC (FCI) part number 10131318-12422G0LF is a connector header designed for through-hole, right-angle mounting. It features a dual-row configuration with 12 positions and a pitch of 0.165 inches (4.20mm). The contacts are gold-plated to ensure reliable signal transmission. This component belongs to the Minitek Power4.2 series, intended for high-density applications requiring robust wire-to-board connections.
Feature Summary
- Right-angle design facilitates compact board layout integration.
- Gold contact plating provides corrosion resistance and stable conductivity.
- Dual-row structure supports higher pin counts in limited space.
Applications
- Wire-to-board interconnections
- High-density circuit board assemblies
- Industrial control systems
Procurement Notes
Verify the exact suffix 'G0LF' against official manufacturer documentation to confirm lead-free status and specific plating thickness. Ensure compatibility with mating connectors regarding row spacing and pin count. Confirm right-angle orientation requirements before procurement to avoid mechanical interference.
Selection Notes
Select this component when a right-angle, dual-row header with 4.20mm pitch is required. Consider the gold plating for environments demanding high reliability. Verify that the through-hole mounting style aligns with the PCB manufacturing capabilities and thermal profile constraints.
Part Context
This part belongs to the Minitek Power4.2 series by Amphenol ICC (FCI), focusing on high-density connectivity solutions. The series is engineered for applications needing reliable signal integrity in compact form factors, distinguishing it from standard pitch headers.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Check for direct cross-reference lists from Amphenol ICC (FCI) if obsolescence occurs.
FAQ
What is the contact material for this connector?
The contacts are gold-plated, ensuring durability and low contact resistance.
Is this connector suitable for high-current applications?
While part of the Power4.2 series, specific current ratings should be verified against the official datasheet for thermal performance under load.
