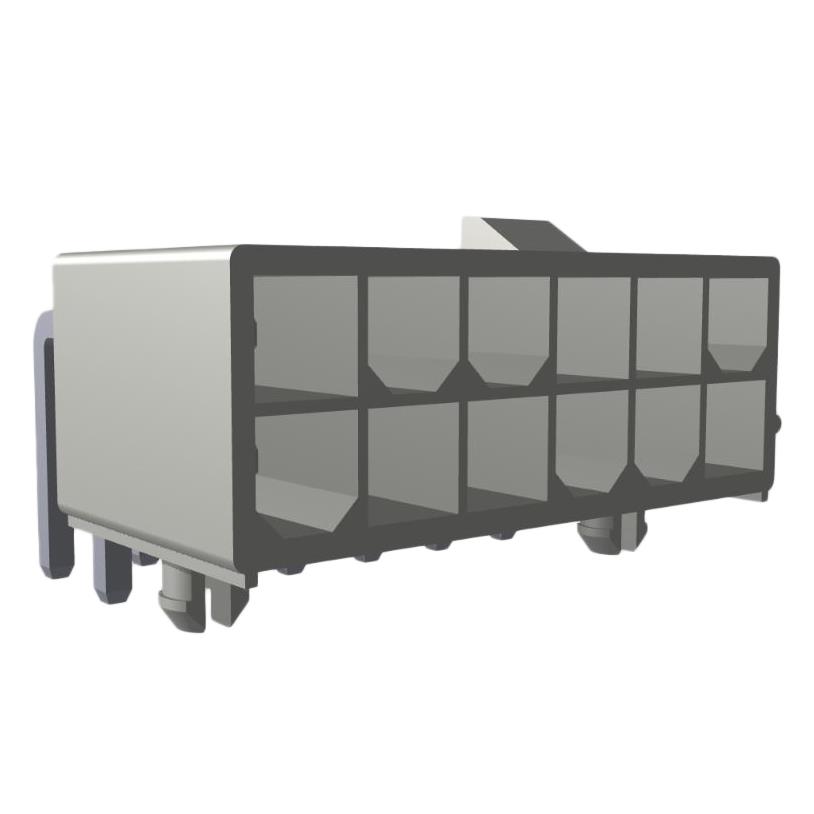

10131318-12512GPLF

Description：CONN HEADER R/A
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:d9c7945d8bb1 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.404" (10.26mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Lock, Glow Wire Compliant
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10131318-12512GPLF

Overview

The Amphenol ICC (FCI) part number 10131318-12512GPLF is a Minitek Power4.2HCC double-row right-angle header designed for power-to-board applications. It features a 4.2 mm pitch and accommodates 12 positions with gold-plated contacts. The connector supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. Constructed with copper contacts and a black housing, it utilizes through-hole solder termination. This component belongs to the Minitek series, providing reliable electrical interconnection in high-density power distribution environments.
