Product Detailed Parameters
- Description：CONN HEADER R/A
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

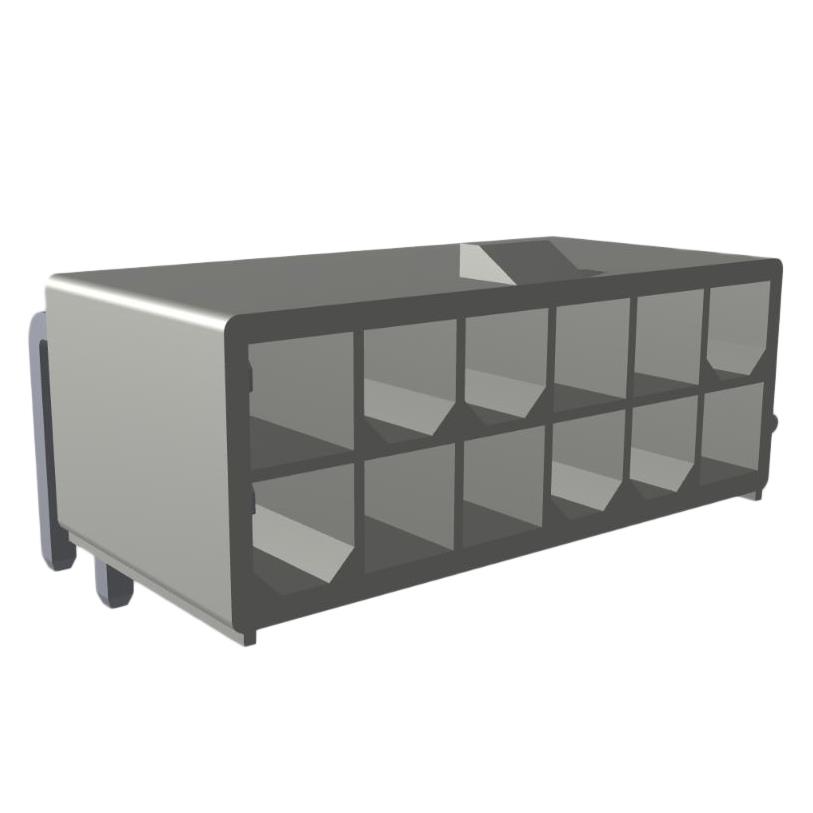

The Amphenol ICC (FCI) part number 10131318-12512GRLF is a Minitek Power4.2HCC double row right-angle header designed for power-to-board applications. It features a 4.2 mm pitch and accommodates 12 positions with gold-plated contacts. The connector supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. Constructed with copper contacts and a natural housing, it utilizes through-hole solder termination. This component belongs to the MinitekPwr 4.2 series, providing reliable electrical connections in compact power distribution systems.
Feature Summary
- Double row right-angle header configuration for efficient board space utilization
- Gold-plated copper contacts ensure reliable conductivity and corrosion resistance
- Through-hole solder termination provides secure mechanical attachment
Applications
- Power distribution modules
- Server and storage equipment
- Communication infrastructure
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm contact plating thickness and housing material variations. Ensure compatibility with mating receptacles from the same Minitek Power4.2 series. Confirm that the right-angle orientation and through-hole termination meet the target PCB layout requirements before finalizing procurement orders.
Selection Notes
Select this component when a high-current power connection requires a right-angle footprint to optimize vertical clearance. The 4.2 mm pitch allows for robust terminal spacing suitable for significant amperage loads. Verify that the 12-position count aligns with the required circuit channels and that the operating temperature range meets environmental specifications.
Part Context
This connector is part of the Minitek Power4.2 series by Amphenol ICC (formerly FCI). The series specializes in power-to-board interconnects offering high current capacity and durability. It serves as a standard solution for industrial and commercial electronics requiring reliable power delivery in constrained spaces.
Replacement Considerations
Compatible substitutes include other Minitek Power4.2 series headers with matching 4.2 mm pitch, 12 positions, and right-angle orientation. Ensure equivalent current ratings and termination types are maintained during substitution.
