10131318-16111G0LF

Overview

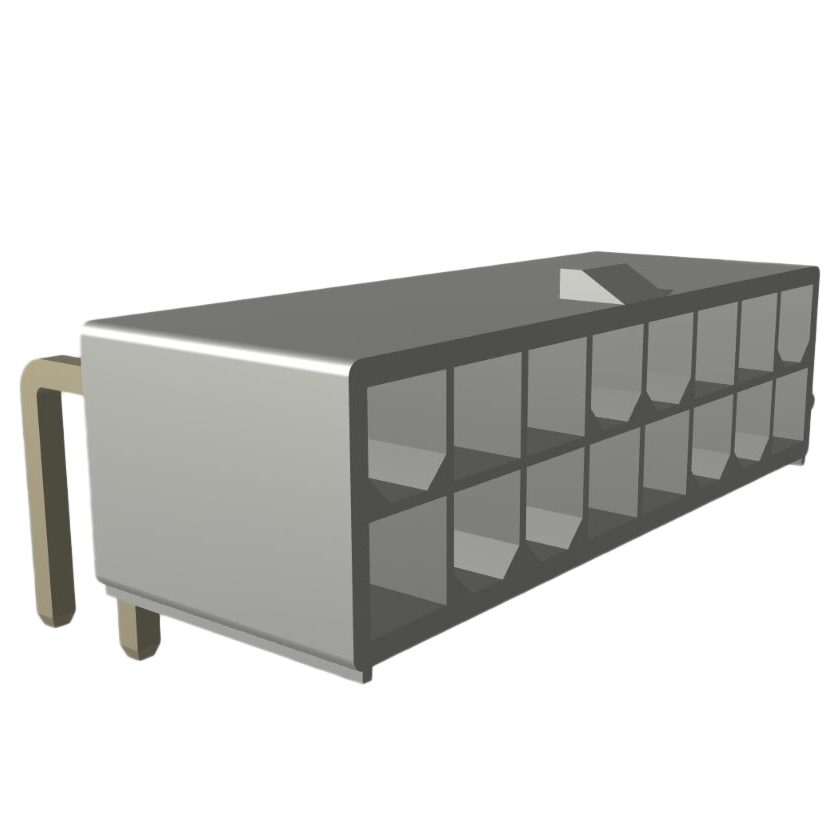

The Amphenol ICC (FCI) part number 10131318-16111G0LF is a Minitek Power 4.2 series header designed for power-to-board applications. It features a 16-position configuration with a 4.2 mm pitch and supports a current rating of 12.5 A. The connector utilizes copper contacts with gold plating and operates within a temperature range of -40°C to +105°C. It is constructed as a right-angle, double-row through-hole header with a natural-colored housing.

Feature Summary

• Right-angle mounting design for space-efficient board integration
• Gold-plated copper contacts for reliable conductivity
• Double-row configuration supporting high-density power distribution

Applications

• Industrial equipment power interfaces
• Factory automation systems
• Power distribution units

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm exact pin count, contact material, and termination style. Ensure the selected variant matches the required mechanical orientation and electrical ratings for the target application before finalizing procurement orders.

Selection Notes

Select this component when a 16-position, right-angle power header is required. Confirm that the 4.2 mm pitch and 12.5 A current capacity align with system requirements. Verify compatibility with mating receptacles from the same Minitek Power 4.2 family to ensure proper engagement and electrical continuity.

Part Context

This component belongs to the Minitek Power 4.2 series, which provides robust interconnect solutions for demanding environments. The series offers various configurations in terms of position count and mounting angles to support diverse power delivery needs across industrial and commercial electronic assemblies.

Replacement Considerations

Consult official substitution guides for compatible alternatives within the Minitek Power 4.2 family. Verify mechanical footprint and electrical specifications match before replacing.
