10131318-1612100LF

Description：CONN HEADER R/A 16POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:a0d8b4898f23 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 16POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.404" (10.26mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10131318-1612100LF

Overview

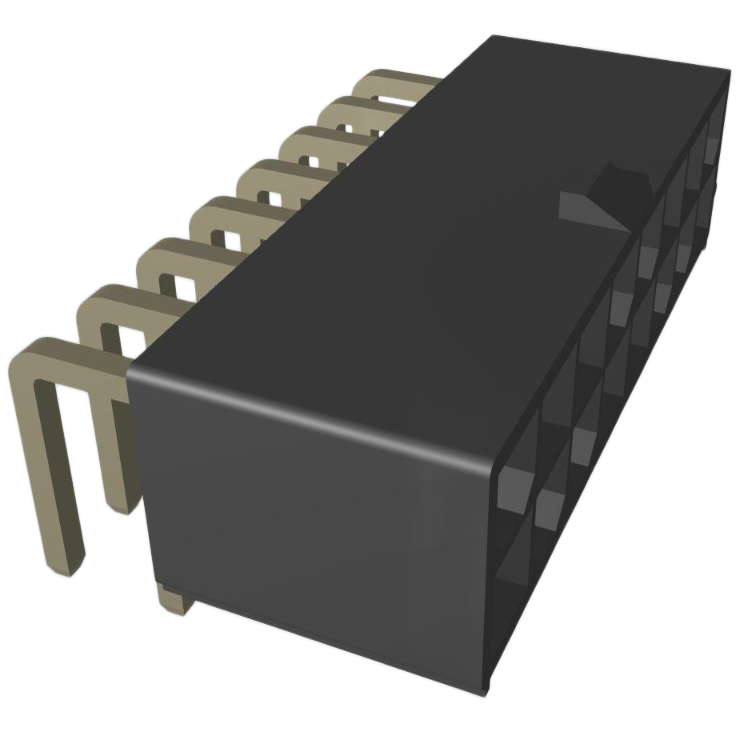

The Amphenol ICC (FCI) part number 10131318-1612100LF is a Minitek Pwr 4.2 High Current header connector designed for power-to-board applications. It features a 16-position configuration with a 4.2mm pitch and utilizes a dual-row arrangement. The component employs through-hole termination with right-angle mounting orientation. Contact surfaces are finished with tin, lead-free plating to ensure reliable conductivity. The housing material provides UL94 V-0 flammability rating. This specific variant belongs to the Minitek series, engineered for high current capacity in dense electronic assemblies.

Feature Summary

High current carrying capability suitable for power distribution
Right-angle through-hole mounting for space optimization
Dual-row layout for increased density

Applications

Server power distribution units
Storage system backplanes
Industrial power modules

Procurement Notes

Verify the exact suffix designation against the manufacturer's latest documentation to confirm plating type and packaging specifications. Ensure compatibility with mating receptacles regarding pin count and row alignment. Confirm RoHS compliance status if required by project regulations. Cross-reference the full part number including any environmental or tape-and-reel indicators before finalizing procurement orders.

Selection Notes

Select this connector when high current handling is required alongside compact board-edge or vertical mounting constraints. Evaluate thermal management requirements given the current ratings. Ensure PCB footprint matches the specified 4.2mm pitch dimensions. Consider mechanical retention needs for through-hole soldering processes during assembly planning.

Part Context

This component belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), a line specialized for robust power interconnects. The series addresses demands for higher current densities in server and storage infrastructure. It complements the broader FCI portfolio of signal and mixed-signal connectors, focusing specifically on power delivery solutions for modern electronic systems.
