10131318-16121G0LF

Overview

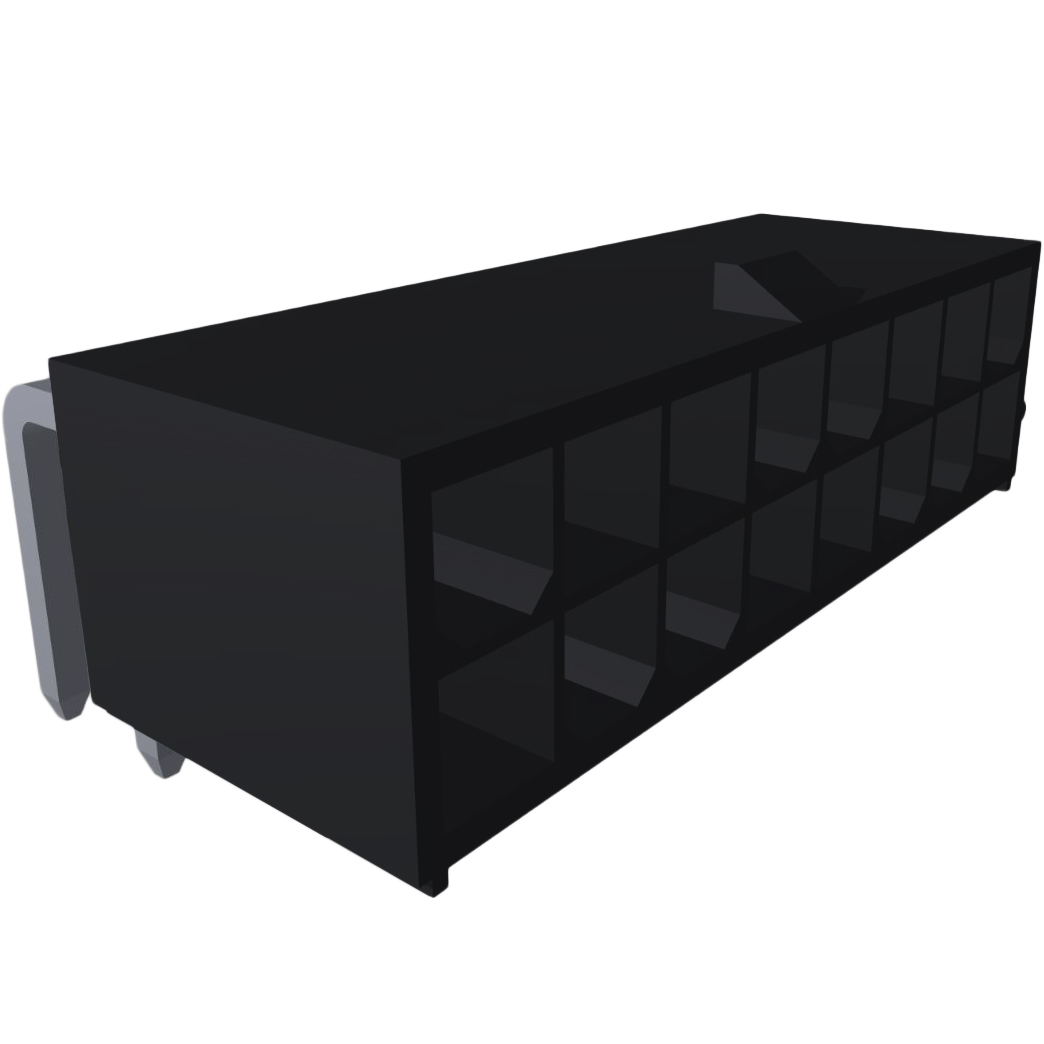

The Amphenol ICC (FCI) part number 10131318-16121G0LF is a Power to the Board header connector belonging to the MinitekPwr 4.2 series. It features a 16-position configuration arranged in a dual-row layout with a 4.2 mm pitch. The component utilizes through-hole right-angle mounting and supports a current rating of 12.5 A and a voltage rating of 600 VAC. Constructed with copper contacts and black insulation, it operates within a temperature range of -40°C to +105°C.

Feature Summary

• Dual-row power header design for high-current board-to-board or cable connections
• Right-angle through-hole mounting for space-efficient PCB integration
• Robust copper contact construction with gold plating for reliable conductivity

Applications

• Industrial control systems requiring high-power distribution
• Server and storage backplane power interfaces
• Telecommunications equipment power supply modules

Procurement Notes

Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the requested quantity aligns with factory order requirements and lead times. Ensure compatibility with existing PCB footprints and mating connectors. Request updated datasheets to validate current specifications against historical data. Check for any regional shipping restrictions or availability constraints.

Selection Notes

Select this connector when a 16-position, 4.2 mm pitch power header is required for right-angle installation. Ensure the application demands a 12.5 A current rating and 600 VAC voltage capability. Verify that the dual-row configuration fits the available PCB area. Consider the operating temperature range of -40°C to +105°C for environmental suitability. Confirm mechanical stability needs for through-hole mounting processes.

Part Context

This component is part of the MinitekPwr 4.2 family, designed for robust power delivery in compact spaces. The series offers various position counts and mounting styles to accommodate diverse power distribution needs. As a right-angle header, it facilitates efficient routing on printed circuit boards where vertical clearance is limited. The product adheres to industry standards for power connectors, ensuring reliability in demanding electronic applications.

Replacement Considerations

Consult official cross-reference lists for compatible alternatives from Amphenol or other manufacturers. Verify that substitute parts match the 16-position count, 4.2 mm pitch, and dual-row configuration. Ensure equivalent electrical ratings of 12.5 A and 600 VAC are maintained. Confirm mechanical compatibility, including right-angle through-hole mounting dimensions. Validate material composition and plating specifications for performance parity.
