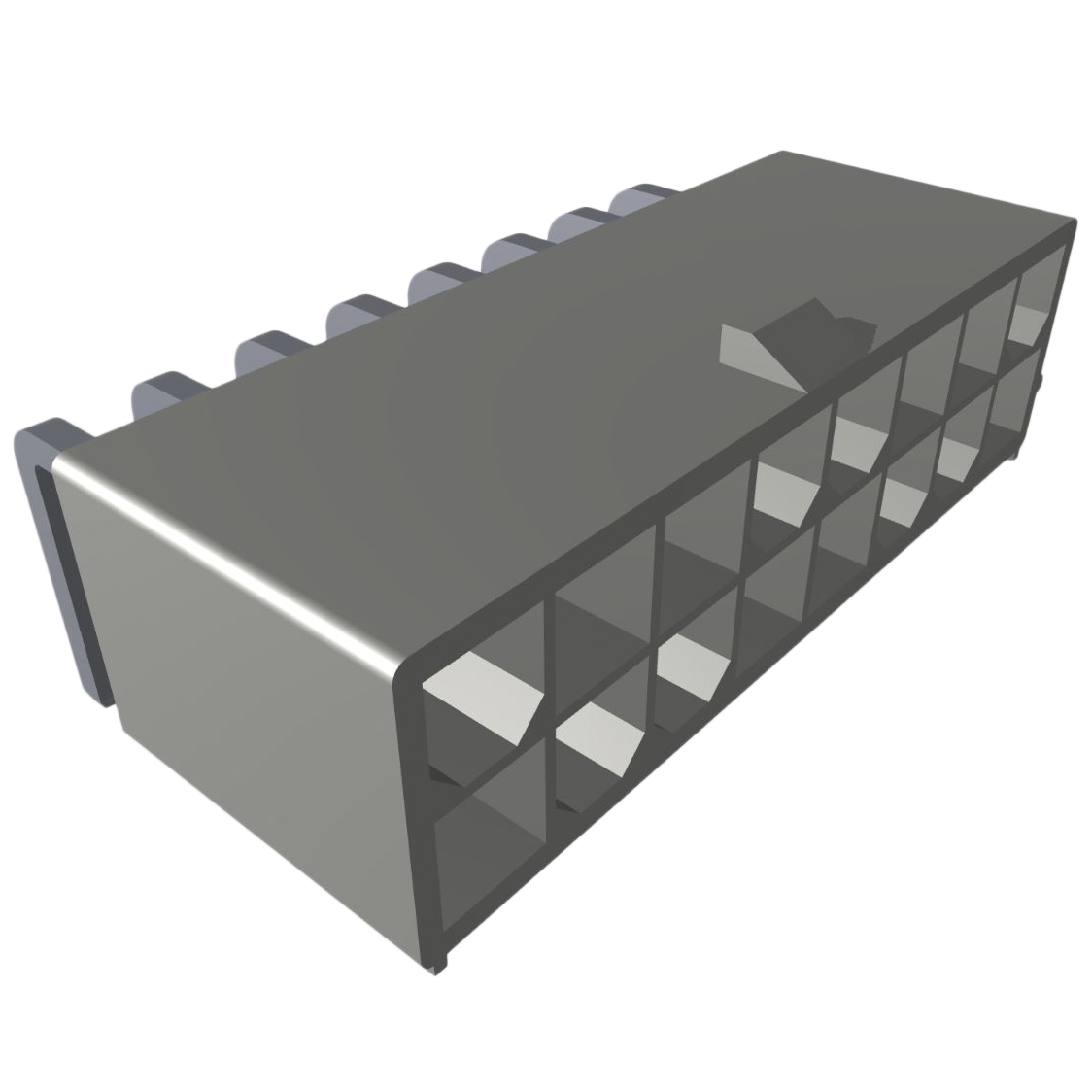

10131318-1621100LF

Description：CONN HEADER R/A 16POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:b316a920dee0 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 16POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.404" (10.26mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：80.0µin (2.03µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10131318-1621100LF

Overview

The Amphenol ICC (FCI) part number 10131318-1621100LF is a Minitek Pwr 4.2 High Current header connector designed for power distribution applications. It features a 16-position configuration with a 4.20mm pitch, supporting high-current requirements typical of industrial and server environments. The component utilizes a right-angle through-hole mounting style, facilitating board-to-board or cable-to-board connections in space-constrained designs. Constructed with robust materials to ensure reliable electrical performance under demanding conditions, this connector is part of the Minitek series known for durability and signal integrity.

Feature Summary

Supports high-current power distribution within the Minitek Pwr 4.2 series
Features a right-angle orientation for efficient board layout integration
Utilizes through-hole termination for secure mechanical attachment

Applications

Industrial automation equipment power interfaces
Server and storage system power distribution boards
Heavy machinery control unit connections

Procurement Notes

Verify the specific contact plating and housing material against the official datasheet before finalizing procurement decisions. Ensure that the right-angle through-hole footprint matches the target PCB design guidelines precisely. Confirm compliance with relevant environmental standards required for the intended operational environment.

Selection Notes

Select this component when high current capacity and a right-angle form factor are required for power applications. Consider the 4.20mm pitch spacing constraints and the mechanical stability provided by the through-hole mounting method. Evaluate thermal management needs relative to the expected load currents in the specific application context.

Part Context

This connector belongs to the Minitek Pwr 4.2 series from Amphenol ICC (FCI), a line specialized for high-power interconnect solutions. The series is engineered for reliability in harsh environments, offering consistent performance across various industrial and computing sectors. The 16-position variant provides a balanced solution for multi-line power routing.
