Product Detailed Parameters
- Description：CONN HEADER R/A 16POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

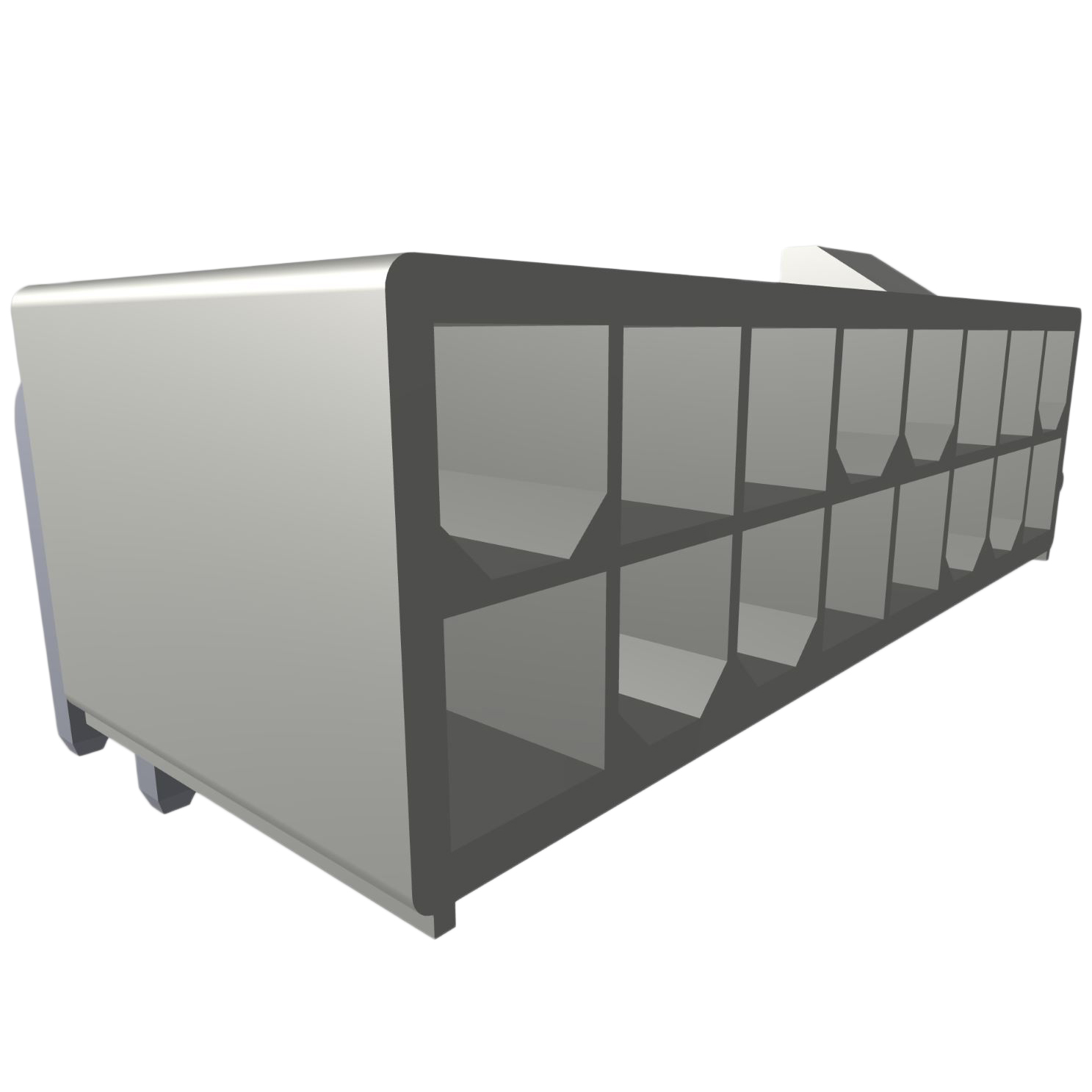

The Amphenol ICC (FCI) part number 10131318-16211G0LF is a Minitek Power 4.2 series header connector designed for power-to-board applications. It features a 16-position configuration with a 4.2 mm pitch and supports a current rating of 12.5 A. The component utilizes copper contacts with gold plating and operates within a temperature range of -40°C to +105°C. It is constructed as a double row, right-angle through-hole device.
Feature Summary
- Right-angle through-hole mounting design
- Gold-plated copper contact system
- Double-row header construction
Applications
- Power distribution on printed circuit boards
- Industrial equipment interconnects
- Consumer electronics power supply connections
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm exact pin count, plating thickness, and termination style. Confirm availability status directly with authorized distributors or the manufacturer, as stock levels fluctuate. Ensure the selected variant matches the required mechanical orientation and electrical ratings for the target application.
Selection Notes
Select this component when a high-current 12.5 A capacity is required in a compact 4.2 mm pitch form factor. The right-angle profile facilitates space-constrained board layouts. Verify that the mating cycle requirements align with the standard durability specifications of the Minitek Power 4.2 series before finalizing the design.
Part Context
This connector belongs to the Minitek Power 4.2 family, which provides robust power solutions for dense electronic assemblies. The series offers various position counts and orientations to accommodate diverse board layout needs while maintaining consistent electrical performance and mechanical reliability across the product line.
Replacement Considerations
Consult official substitution guides for compatible alternatives within the same series. Verify that any replacement maintains identical pitch, current rating, and mounting configuration to ensure mechanical fit and electrical continuity without redesigning the PCB footprint.
