Product Detailed Parameters
- Description：CONN HEADER R/A 16POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

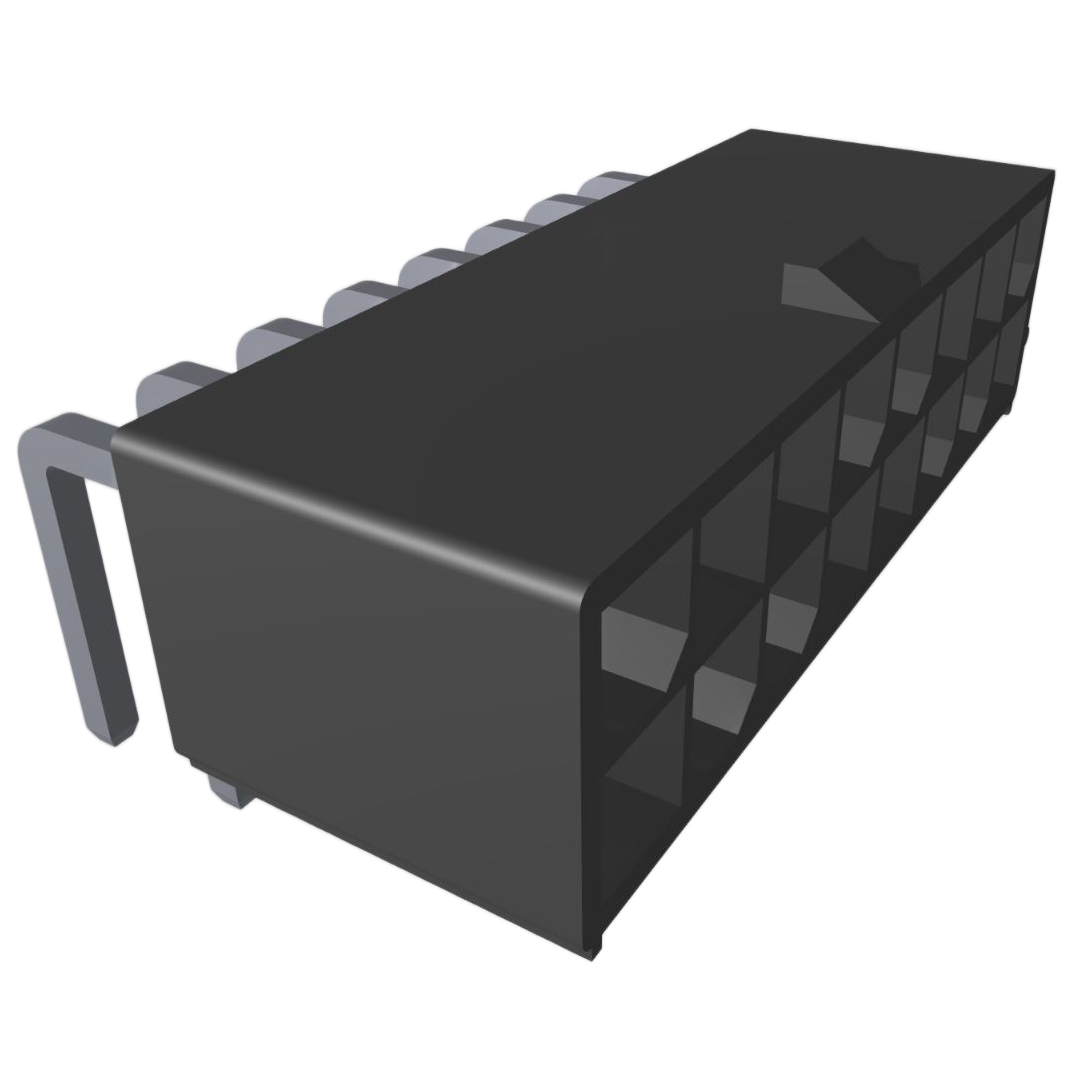

The Amphenol ICC (FCI) part number 10131318-1622100LF is a Power to the Board header connector belonging to the Minitek Pwr 4.2 series. It features a right-angle orientation with 16 positions arranged in two rows. The connector utilizes a 4.2 mm pitch and is designed for surface mount termination. Rated current capacity is specified at 12.5 A per contact. The housing material exhibits UL94 V-0 flammability rating, and the contacts are gold-plated copper. Operating temperature range spans from -40°C to +105°C.
Feature Summary
- Right-angle surface mount design for compact board integration
- High current carrying capability of 12.5 A per position
- Dual-row configuration providing 16 signal or power paths
- Gold-plated contacts ensure reliable conductivity and corrosion resistance
Applications
- Industrial control systems requiring robust power distribution
- Factory automation equipment and machinery interfaces
- Power supply modules and energy generation units
- Heavy instrumentation and measurement devices
Procurement Notes
Verify component authenticity through authorized channels due to potential counterfeit risks. Confirm RoHS compliance status as lead-free variants exist within the series. Validate mechanical fit against PCB footprint specifications before ordering. Check current lifecycle status as manufacturing schedules may vary. Ensure storage conditions maintain moisture sensitivity levels during handling.
Selection Notes
Select this component when high-current density is required in space-constrained environments. The right-angle profile facilitates efficient board stacking and routing. Verify that the 4.2 mm pitch aligns with existing layout constraints. Consider thermal management requirements given the 12.5 A rating. Evaluate mating cycle durability against operational frequency needs.
Part Context
This connector belongs to the Minitek Pwr 4.2 family, engineered for demanding industrial applications. The series emphasizes reliability under harsh environmental conditions. It supports both signal and power transmission roles. The design prioritizes secure connection integrity and ease of assembly. Competing solutions often lack equivalent current ratings at similar form factors.
Replacement Considerations
Direct substitutes include other Minitek Pwr 4.2 series headers with matching pin counts and orientations. Verify identical pitch dimensions and mounting hole placements. Cross-reference contact plating thickness and material composition. Ensure voltage ratings meet or exceed original specifications.
