Product Detailed Parameters
- Description：CONN HEADER R/A 16POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

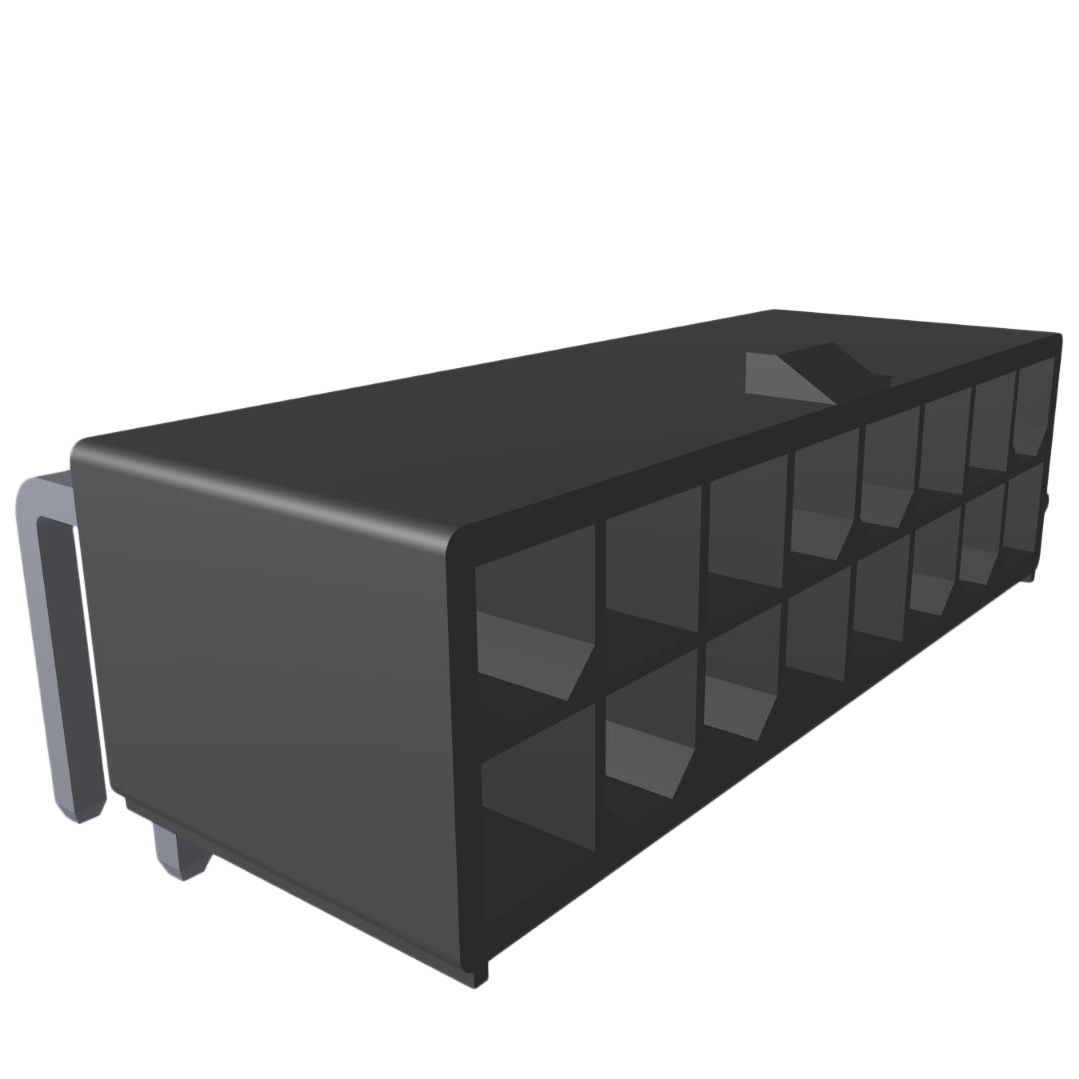

The Amphenol ICC (FCI) part number 10131318-16221G0LF is a right-angle through-hole header connector belonging to the Minitek Power 4.2 series. It features a 16-position configuration with a 4.2 mm pitch arranged in two rows. The component utilizes gold-plated contacts and is designed for power-to-board applications. It operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 1 GOhms.
Feature Summary
- Right-angle through-hole mounting style for board integration
- Dual-row 16-position layout with 4.2 mm spacing
- Gold contact plating for reliable conductivity
- High insulation resistance rating
Applications
- Power distribution systems
- Industrial equipment interconnects
- Consumer electronics power boards
Procurement Notes
Verify the specific manufacturer designation, as sources list both Amphenol FCI and Amphenol ICC (FCI). Confirm RoHS compliance status and lead-free characteristics against the official datasheet before procurement. Ensure the right-angle orientation matches the design requirements.
Selection Notes
Select this component when a 16-pin right-angle header with 4.2 mm pitch is required. It is suitable for applications needing robust power connections with gold-plated contacts. Verify that the through-hole termination style aligns with the PCB manufacturing capabilities.
Part Context
This connector is part of the Minitek Power 4.2 series, designed for high-current power applications. The series provides various position counts and mounting styles. This specific model focuses on right-angle through-hole implementation for space-constrained power routing.
Replacement Considerations
Compatible alternatives include other 16-position 4.2 mm pitch headers from the same series, such as 10131318-16121G0LF, provided the mounting angle and termination style match the design constraints.
