Product Detailed Parameters
- Description：CONN HEADER R/A 18POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

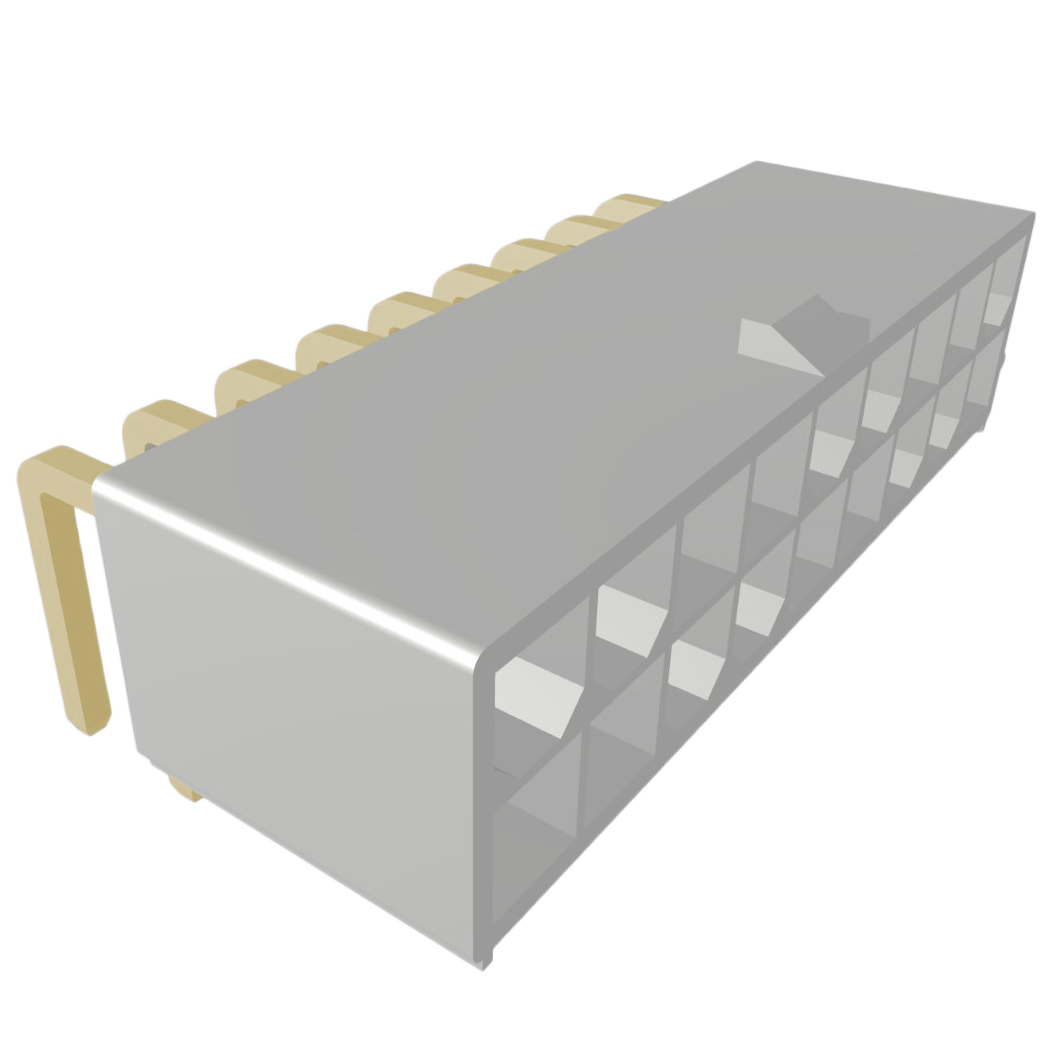

The Amphenol ICC (FCI) 10131318-1811100LF is a Minitek Pwr 4.2 High Current header connector designed for power-to-board applications. It features a 18-position configuration with male pin contacts and a 4.20mm pitch. The component utilizes through-hole termination and is mounted at a right angle. Rated for 12.5 A current and 600 VAC voltage, it operates within a temperature range of -40°C to +105°C. The housing is constructed from black Nylon 6.6 with UL94 V-0 flammability rating, and contacts are tin-plated copper.
Feature Summary
- High current capacity suitable for demanding power distribution tasks
- Right-angle mounting optimizes board space utilization
- Robust nylon housing ensures thermal stability and fire resistance
Applications
- Industrial equipment power distribution
- Factory automation systems
- Heavy machinery control units
- Power supply modules
Procurement Notes
Verify the specific ordering suffix to confirm contact plating and packaging details. Ensure the selected variant matches the required current rating and mechanical orientation for your PCB layout. Confirm availability status as lead times may vary for specialized industrial components.
Selection Notes
Select this connector when high current handling and right-angle installation are required. The 4.20mm pitch provides ample spacing for high-voltage isolation. Ensure the PCB footprint aligns with the through-hole specification and verify that the operating temperature range meets environmental requirements.
Part Context
This component belongs to the Minitek Pwr 4.2 series, a line of high-current connectors engineered for robust performance in industrial environments. The series is characterized by its ability to handle significant electrical loads while maintaining reliable connections under vibration and thermal stress conditions common in heavy-duty applications.
Replacement Considerations
Direct substitutes must match the 4.20mm pitch, 18-position count, and right-angle through-hole form factor. Verify that alternative headers support equivalent 12.5 A current ratings and 600 VAC insulation capabilities to maintain system safety and performance integrity.
