10131318-18111G0LF

Overview

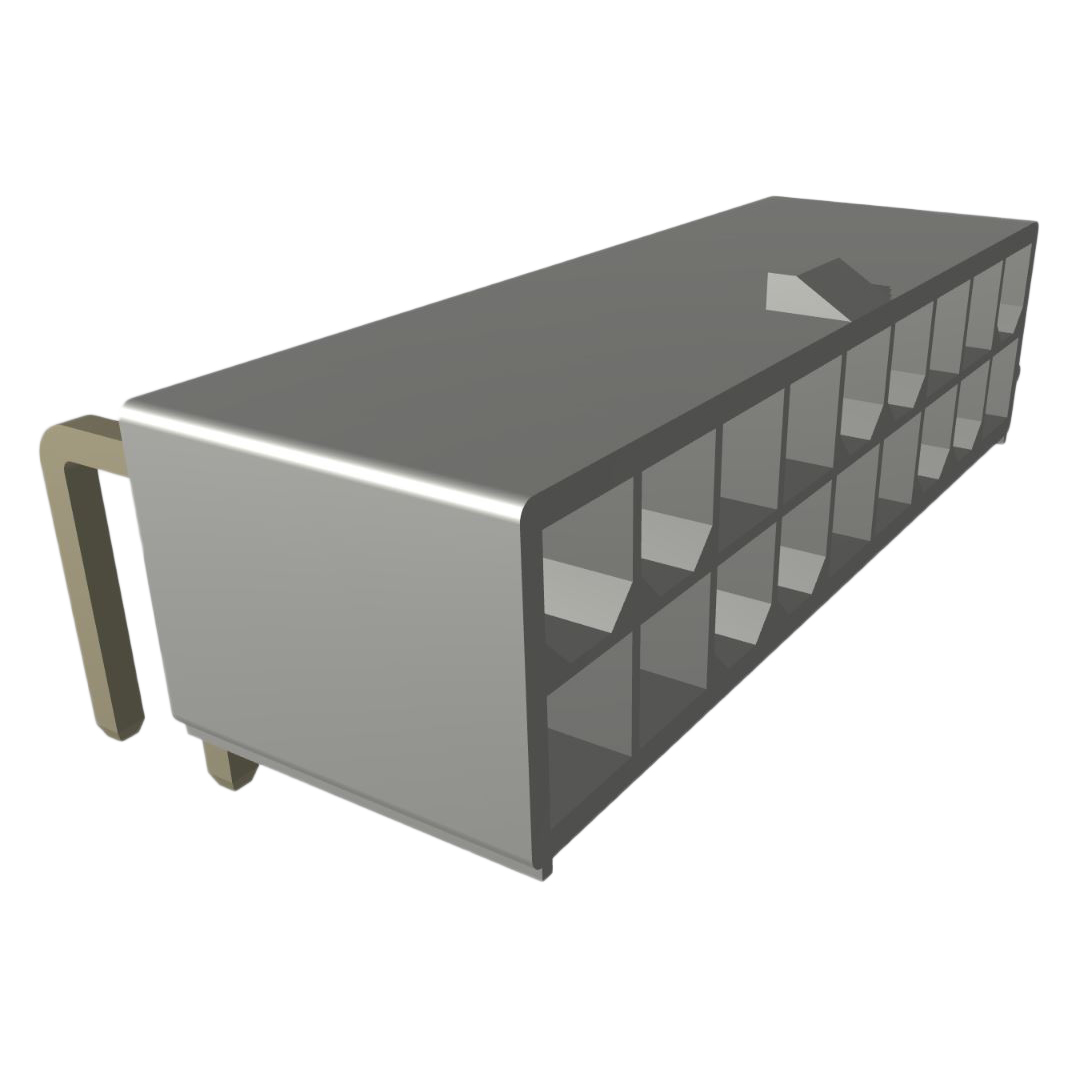

The Amphenol ICC (FCI) part number 10131318-18111G0LF is a high-density pin-and-socket connector belonging to the Minitek PWR 4.2 series. It features a 18-position header with a 4.2 mm pitch, designed for right-angle through-hole mounting. The connector utilizes copper contacts with gold plating and is rated for 12.5 A current and 600 VAC voltage. Operating within a temperature range of -40°C to +105°C, it employs Liquid Crystal Polymer (LCP) insulation and offers an insulation resistance of 1 GOhms.

Feature Summary

• High-density power distribution design optimized for compact applications
• Robust electrical performance with 12.5 A current rating and 600 VAC capability
• Durable construction using LCP housing and gold-plated copper contacts

Applications

• Compact power-dense electronic systems
• Server and storage infrastructure power delivery
• Industrial equipment requiring reliable board-to-board or cable-to-board connections

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer's official datasheet and ordering information. Confirm that the specific suffix matches the required contact plating thickness and housing color specifications. Ensure compliance with RoHS directives and check for any recent product change notices affecting availability or material composition before finalizing procurement orders.

Selection Notes

Select this connector when space constraints require a high pin count in a minimal footprint. The 4.2 mm pitch allows for significant current carrying capacity while maintaining a small profile. Consider the right-angle orientation for efficient PCB layout routing. Verify that the operating temperature range meets the environmental requirements of the target application.

Part Context

This component is part of the Minitek PWR 4.2 family, which provides high-current solutions for demanding environments. The series is engineered for reliability in server and industrial sectors. The specific model integrates standard through-hole termination methods with advanced materials to ensure long-term stability under thermal stress.

Replacement Considerations

Direct substitutes within the same series include variations such as 10131318-1811100LF, which shares identical mechanical dimensions and electrical ratings but may differ in packaging or minor material specifications. Always validate pin compatibility and mounting hole alignment before substituting.
