Product Detailed Parameters
- Description：CONN HEADER R/A 20POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

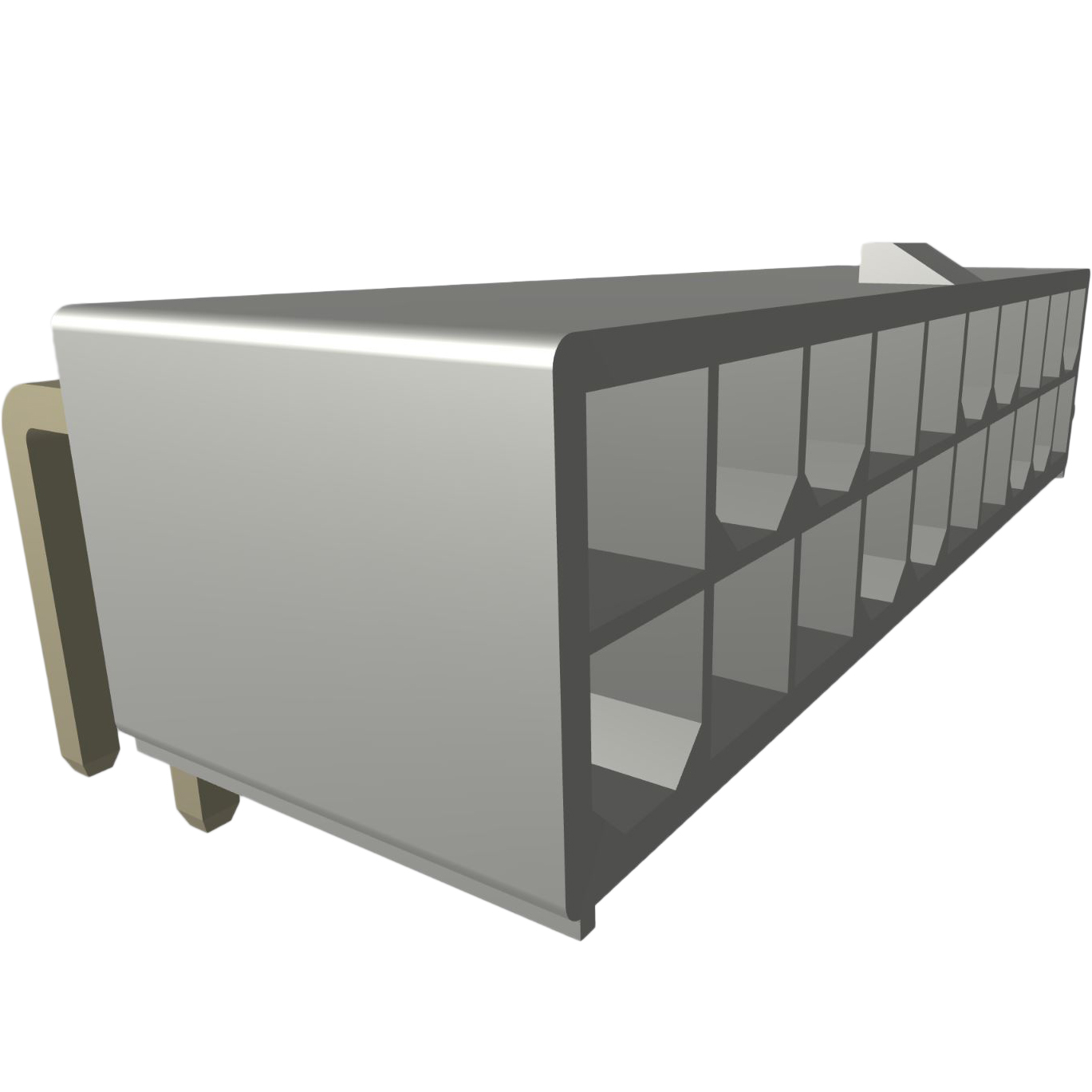

The Amphenol ICC (FCI) part number 10131318-2011100LF is a right-angle header connector belonging to the MinitekPwr 4.2 series. It features 20 positions with a 4.2 mm pitch and utilizes male pin contacts. Designed for through-hole termination, this component supports high-power applications with a rated current of 12.5 A and a voltage rating of 600 VAC. The housing is constructed from black Nylon 6.6 with a UL94 V-0 flammability rating. Operating within a temperature range of -40°C to +105°C, it ensures reliable performance in demanding environments.
Feature Summary
- High-current power delivery capability suitable for board-to-board connections
- Right-angle design facilitates compact system integration and space optimization
- Robust construction using UL94 V-0 rated Nylon 6.6 housing material
Applications
- Server and storage equipment power distribution
- Industrial control systems requiring high current
- Communication infrastructure power modules
Procurement Notes
Verify RoHS compliance status and specific plating requirements against project specifications. Confirm that the right-angle orientation and 4.2 mm pitch align with PCB layout constraints. Ensure thermal management strategies accommodate the 12.5 A current rating during operation. Cross-reference lead times and availability as supply chain conditions may fluctuate for discontinued or legacy series components.
Selection Notes
Select this component when high current capacity and right-angle mounting are required for power bus applications. The 4.2 mm pitch allows for significant spacing between contacts, reducing arcing risks. Consider the operating temperature range and mechanical stability provided by the through-hole solder termination method for robust assembly.
Part Context
This connector belongs to the MinitekPwr 4.2 series, designed for power-to-the-board applications. It integrates high-current capabilities with standard form factors, serving as a critical interconnect solution in modern electronic systems where reliable power transmission and compact packaging are essential for overall system efficiency.
Replacement Considerations
Check for direct cross-references within the MinitekPwr family. Verify compatibility with mating receptacles regarding pitch, contact configuration, and locking mechanisms before substitution.
