Product Detailed Parameters
- Description：CONN HEADER R/A 20POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

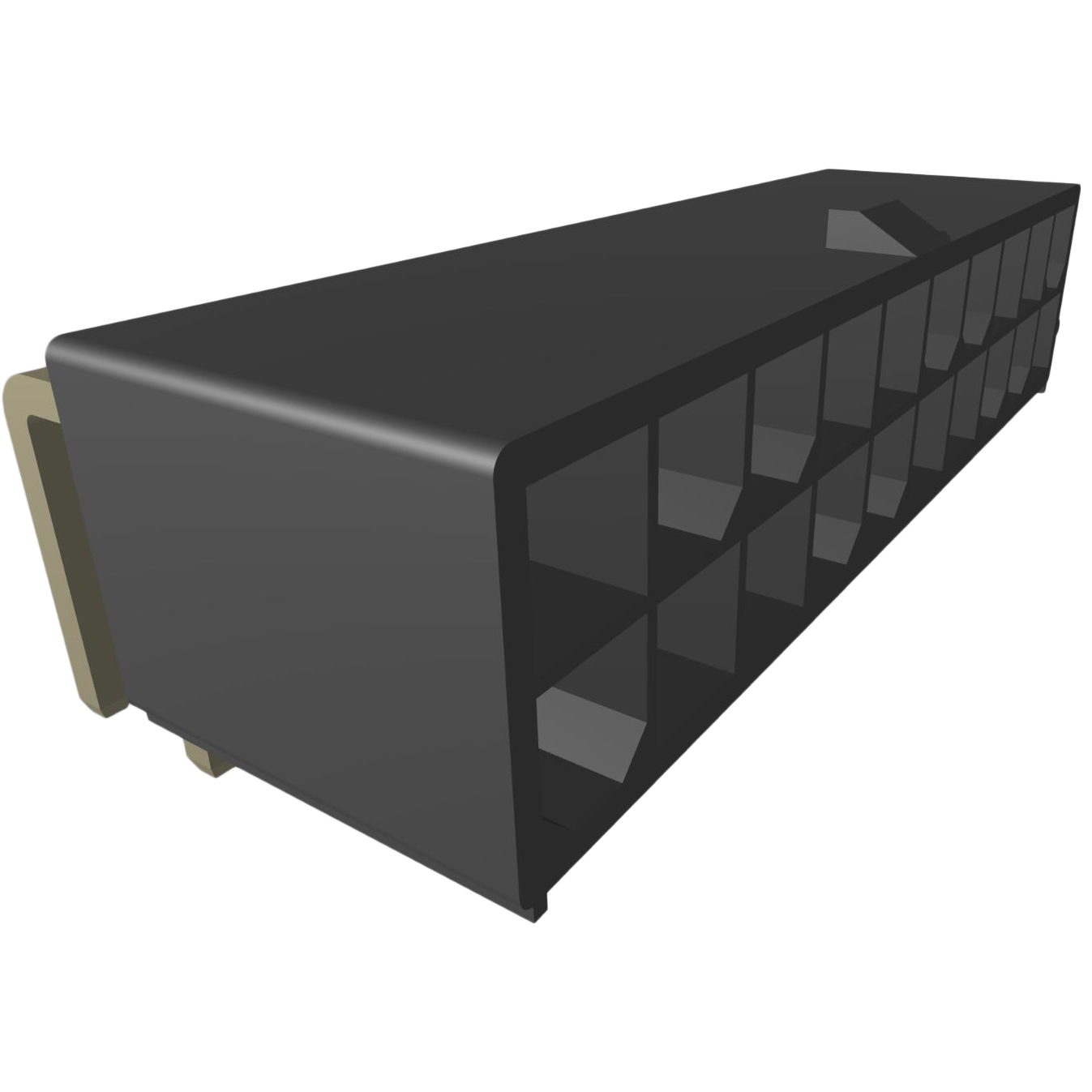

The Amphenol ICC (FCI) part number 10131318-2012100LF is a right-angle header connector belonging to the Minitek Power 4.2 series. It features 20 positions with a 4.2 mm pitch and utilizes two rows of male pins. Designed for power-to-board applications, it supports through-hole mounting and solder termination. The connector is rated for 12.5 A current and 600 VAC voltage, operating within a temperature range of -40°C to +105°C.
Feature Summary
- High-current power delivery capability suitable for board-level power distribution
- Robust mechanical design with right-angle orientation for space-constrained layouts
- Gold or tin plating options available for reliable contact performance
Applications
- Server and storage backplane power connections
- Industrial control system power interfaces
- Telecommunications equipment power distribution
Procurement Notes
Verify component authenticity through authorized distributors. Confirm RoHS compliance status as some variants may differ. Check for obsolescence notices from Amphenol ICC. Ensure mating connector compatibility regarding pin count and pitch specifications before procurement.
Selection Notes
Select this connector when high current capacity and rigid board-edge mounting are required. Consider the 4.2 mm spacing for thermal management needs. Evaluate housing material properties against environmental exposure conditions. Match terminal plating type to expected mating cycles and corrosion resistance requirements.
Part Context
This component is part of the Minitek Power 4.2 family, designed for robust power interconnects. It complements other headers in the series offering different position counts. The series provides standardized dimensions for consistent assembly processes across various industrial and computing platforms.
Replacement Considerations
Direct substitutes include 10131318-02421GPLF, 10131318-04412GPLF, and 10131318-105210PLF. Verify pin count and plating specifications match application requirements. Cross-reference mechanical drawings for mounting hole alignment.
