10131318-20121G0LF

Overview

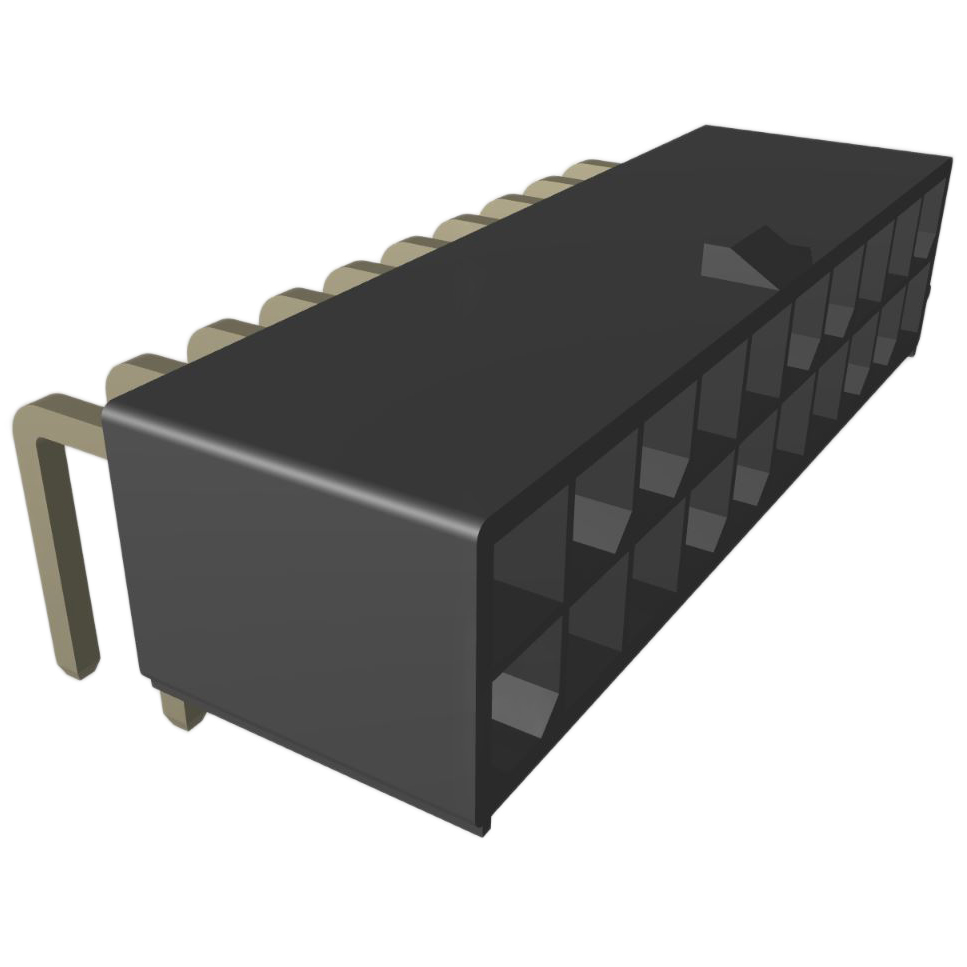

The Amphenol ICC (FCI) part number 10131318-20121G0LF is a right-angle, through-hole power connector header from the Minitek Pwr 4.2 series. It features a 2-row configuration with 20 positions and a 4.2 mm pitch. The contacts are gold-plated copper pins rated for 12.5 A current and 600 VAC voltage. Designed for high-current applications, it operates within a temperature range of -40°C to +105°C and utilizes a black nylon housing.

Feature Summary

• High-density two-row design optimized for compact, power-dense board layouts
• Gold-plated contact finish ensures reliable conductivity and corrosion resistance
• Right-angle mounting style facilitates efficient spatial arrangement on printed circuit boards

Applications

• Power distribution in industrial control systems
• High-current connections in server and storage infrastructure
• Power delivery in telecommunications equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm plating thickness and material specifications. Ensure the selected variant matches the required pin count and row configuration for your PCB layout. Cross-reference the part number with the latest Amphenol documentation to confirm availability and compliance status before finalizing procurement orders.

Selection Notes

Select this component when a right-angle, high-current interconnect is required for space-constrained designs. The 4.2 mm pitch supports substantial current carrying capacity suitable for main power rails. Confirm that the through-hole termination method aligns with your assembly process and that the operating temperature range meets environmental requirements.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, engineered for high-current power-to-board applications. The series provides robust electrical performance with a focus on durability and density. It serves as a critical interface between power sources and circuit boards in demanding electronic environments requiring reliable high-amperage connections.

Replacement Considerations

Compatible substitutes within the same Minitek Pwr 4.2 series include variants with different pin counts or plating options, such as 10131318-20121GPLF. Verify mechanical dimensions and electrical ratings before substitution to ensure compatibility with existing PCB footprints and system requirements.
