Product Detailed Parameters

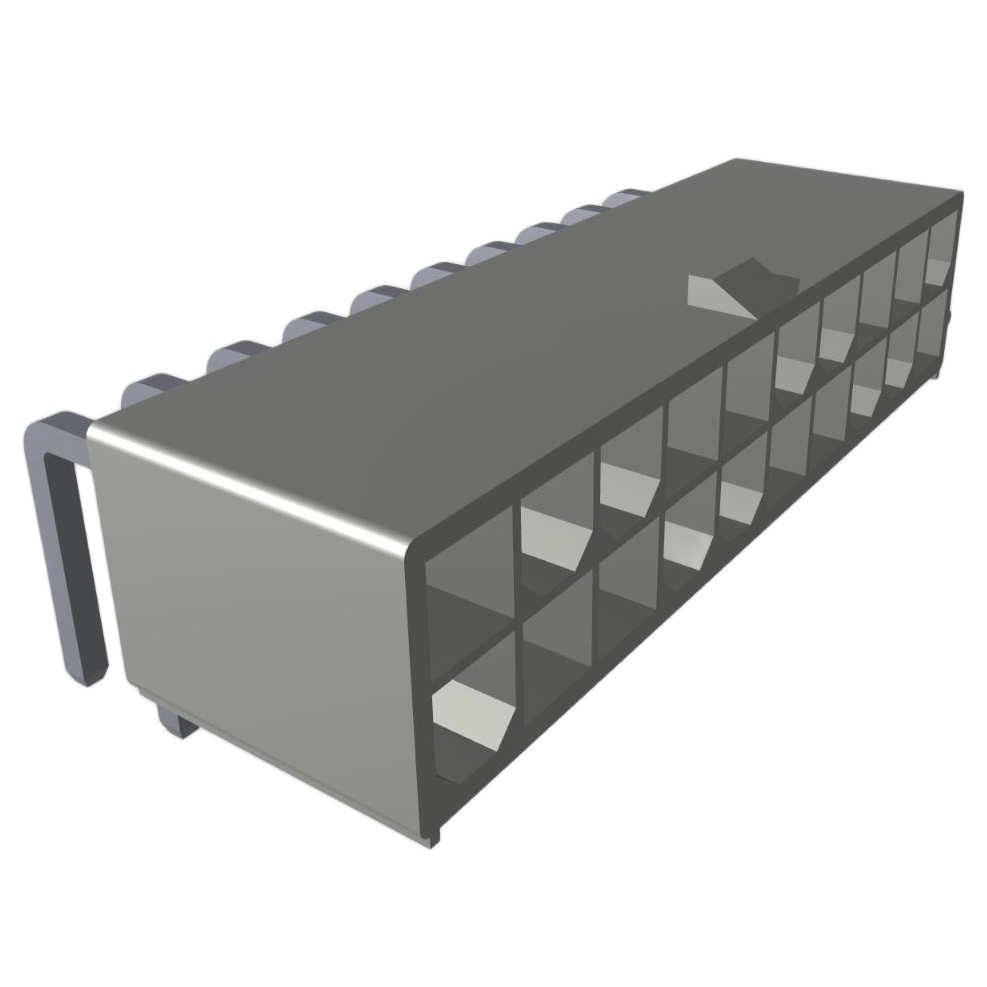

- Description：CONN HEADER R/A 20POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview
The Amphenol ICC (FCI) part number 10131318-2021100LF is a Power to the Board connector belonging to the MinitekPwr 4.2 series. It features a 20-position configuration with a 4.2 mm pitch, designed for high-current applications. The connector supports a current rating of 12.5 A and a voltage rating of 600 VAC. It utilizes gold-plated copper contacts and is available in a right-angle header format.
Feature Summary
- Supports high-power distribution with a 12.5 A current rating per contact
- Features a robust 4.2 mm pitch design for stable board-to-board connections
- Utilizes gold-plated copper contacts to ensure reliable conductivity and corrosion resistance
Applications
- Industrial control systems requiring high power density
- Consumer electronics with significant power demands
- Automotive systems needing durable power interfaces
- IoT devices utilizing compact power solutions
- Medical equipment requiring reliable electrical connections
Procurement Notes
Verify the specific ordering suffix and packaging quantity directly with the manufacturer or authorized distributors. Confirm that the component meets all necessary environmental compliance standards for your intended application before finalizing procurement orders.
Selection Notes
Select this component when a high-current, board-to-board interface is required. Ensure the mating connector matches the 4.2 mm pitch and 20-position count. Verify that the PCB layout accommodates the right-angle header profile and sufficient clearance for the housing dimensions.
Part Context
This connector is part of the MinitekPwr 4.2 series by Amphenol ICC (FCI). The series is engineered for power distribution in compact spaces. It provides a balance of high current capacity and mechanical stability for demanding electronic environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Amphenol ICC (FCI) engineering support for potential cross-reference options if this specific part number is unavailable.
