Product Detailed Parameters
- Description：CONN HEADER R/A 20POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

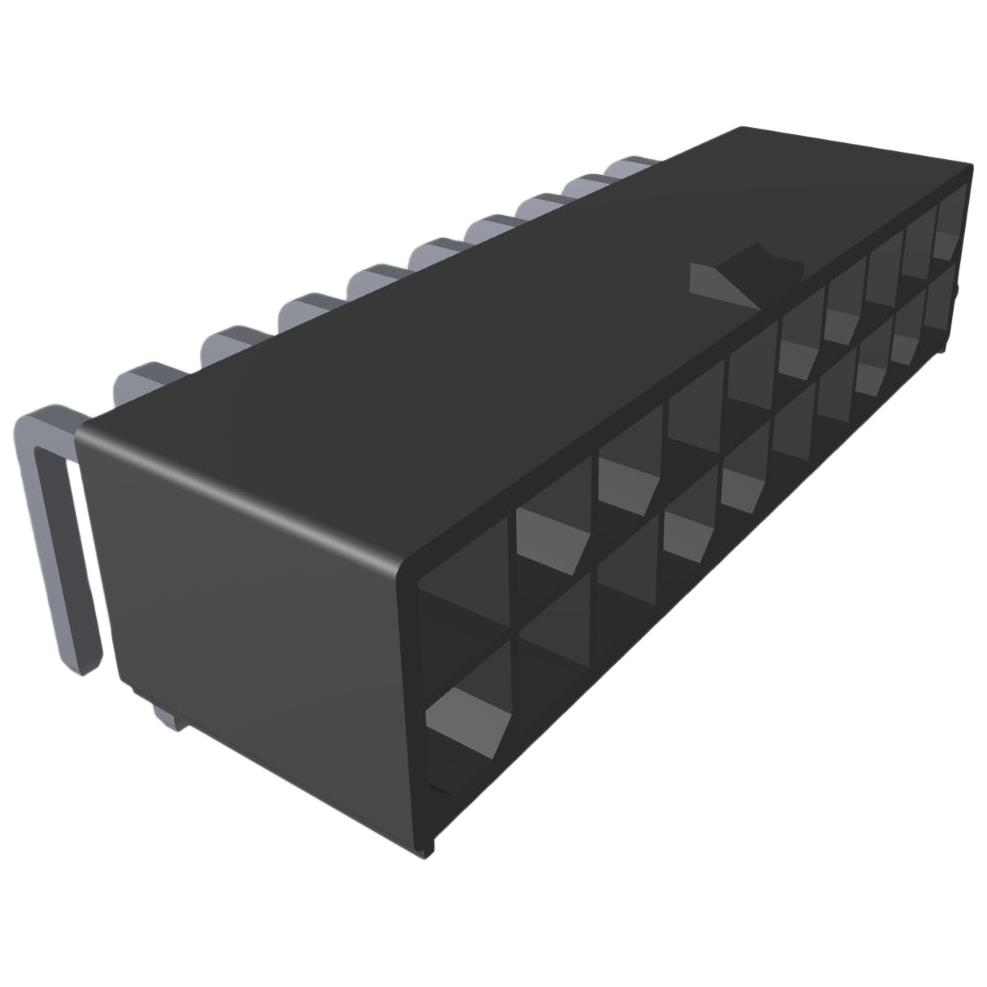

The Amphenol ICC (FCI) part number 10131318-2022100LF is a right-angle power connector header belonging to the Minitek Pwr 4.2 series. It features a 20-position configuration with a 4.2 mm pitch and two rows of contacts. The component utilizes gold-plated copper terminals and is designed for surface-mount or through-hole termination, depending on specific variant specifications within the base series. It supports high-current applications up to 12.5 A per contact and operates within a temperature range of -40°C to +105°C. The housing is constructed from durable polymer material rated UL94 V-0 for flammability.
Feature Summary
- High current capacity suitable for power distribution in compact systems
- Right-angle design optimizes board space utilization
- Gold-plated contacts ensure reliable conductivity and corrosion resistance
Applications
- Power supply modules
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify the exact termination style (surface mount vs. through-hole) against the manufacturer's official datasheet, as suffixes may indicate mechanical variations. Confirm RoHS compliance status directly with the supplier, as lead-free designations can vary by production batch. Ensure mating connector compatibility regarding pin count and pitch before ordering.
Selection Notes
Select this component when a right-angle power interface with a 4.2 mm pitch is required. Consider the 12.5 A current rating and operating temperature range for thermal management. Verify that the board layout accommodates the right-angle profile and that the mating connector matches the 20-position, dual-row specification.
Part Context
This connector is part of the Minitek Pwr 4.2 family, engineered for robust power-to-board connections. The series is characterized by its ability to handle significant current loads in dense electronic assemblies. Amphenol ICC (FCI) designs these components to meet stringent reliability standards for industrial and communication infrastructure environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pitch, current rating, and mechanical form factor with alternative manufacturers.
