Product Detailed Parameters
- Description：CONN HEADER R/A 22POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：22
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

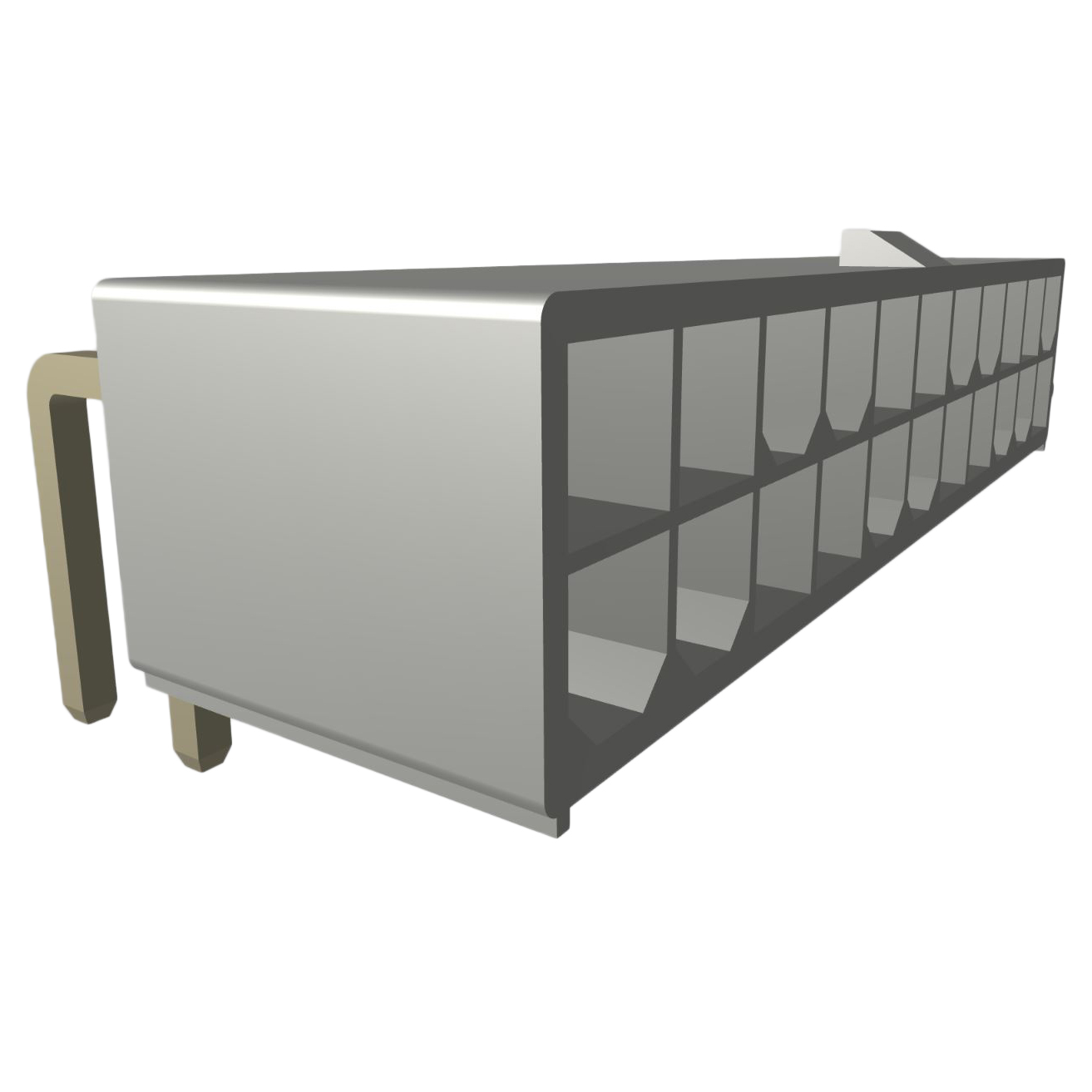

The Amphenol ICC (FCI) part number 10131318-2211100LF is a Power to the Board header connector from the MinitekPwr 4.2 series. It features a right-angle, through-hole mounting style with 22 positions arranged in two rows. The connector utilizes a 4.2 mm pitch and is designed for high-current applications, rated at 12.5 A per contact. The housing is black nylon 6.6, and contacts are copper alloy with tin plating. It operates within a temperature range of -40°C to +105°C and has an insulation resistance of 1 GOhms.
Feature Summary
- High current capacity of 12.5 A per contact for power distribution
- Right-angle through-hole termination for board edge mounting
- Dual row configuration with 4.2 mm spacing for compact layout
- Black nylon 6.6 housing with UL94 V-0 flammability rating
Applications
- Server and storage system power distribution
- Telecommunications equipment backplanes
- Industrial control board interconnects
- Data communication infrastructure power headers
Procurement Notes
Verify component authenticity through authorized Amphenol distributors or direct manufacturer channels. Confirm RoHS compliance status as tin-plated variants may differ from lead-free specifications. Check for obsolescence notices or lifecycle changes prior to finalizing procurement orders to ensure long-term supply stability.
Selection Notes
Select this connector when right-angle through-hole mounting is required for high-power bus applications. Ensure PCB design accommodates the 4.2 mm pitch and dual-row footprint. Verify that mating receptacles match the 22-position configuration and tin-plated contact finish for reliable electrical performance.
Part Context
This component belongs to the MinitekPwr 4.2 series, a specialized line of power connectors by Amphenol ICC (FCI). The series is engineered for dense power distribution in server and telecom environments. The 10131318 prefix denotes the specific header variant within this family, characterized by its robust mechanical design and high current handling capabilities.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical pin count, pitch, and mounting style verification.
