Product Detailed Parameters
- Description：CONN HEADER R/A 22POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：22
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

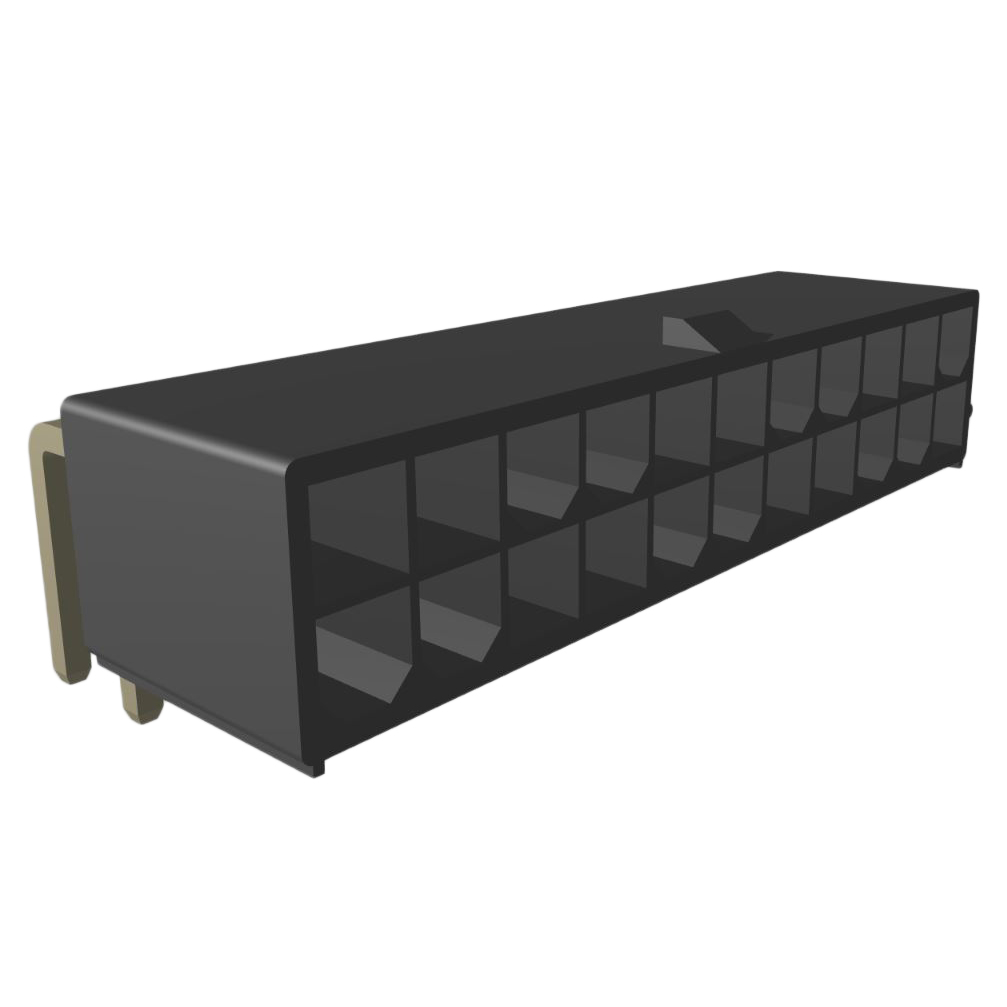

The Amphenol ICC (FCI) part number 10131318-2212100LF is a Minitek Power4.2HCC DR RATH HDR connector featuring 22 positions with a 4.2 mm pitch. It utilizes tin-plated copper contacts rated for 12.5 A current and 600 VAC voltage. Designed for through-hole right-angle installation, the housing is constructed from black nylon 6.6. The component operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 1 GOhm.
Feature Summary
- Dual-row header configuration designed for high-density power distribution applications
- Robust mechanical construction utilizing nylon 6.6 housing material for thermal stability
- Right-angle through-hole mounting style optimized for specific board layout constraints
Applications
- Server and storage equipment power distribution
- Telecommunications infrastructure hardware
- Industrial control system power interfaces
Procurement Notes
Verify the complete part number including suffixes against official manufacturer documentation to ensure correct contact plating and housing specifications. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer, as availability may vary by region and production batch.
Selection Notes
Select this component when a dual-row, right-angle power header with a 4.2 mm pitch is required. Ensure the application environment stays within the specified -40°C to +105°C operating range. Verify that the PCB footprint matches the through-hole pin dimensions and that the 12.5 A current rating meets the circuit requirements.
Part Context
This connector belongs to the Minitek Power4.2 series, a line of power-to-board connectors engineered for robust electrical connections in demanding environments. The series is characterized by its high current capacity and durable housing materials, making it suitable for critical power delivery systems in data communication and industrial sectors.
Replacement Considerations
Consult official substitution lists for compatible alternatives within the Minitek Power4.2 family. Verify mechanical compatibility and electrical ratings before considering cross-brand replacements.
