10131318-22121G0LF

Overview

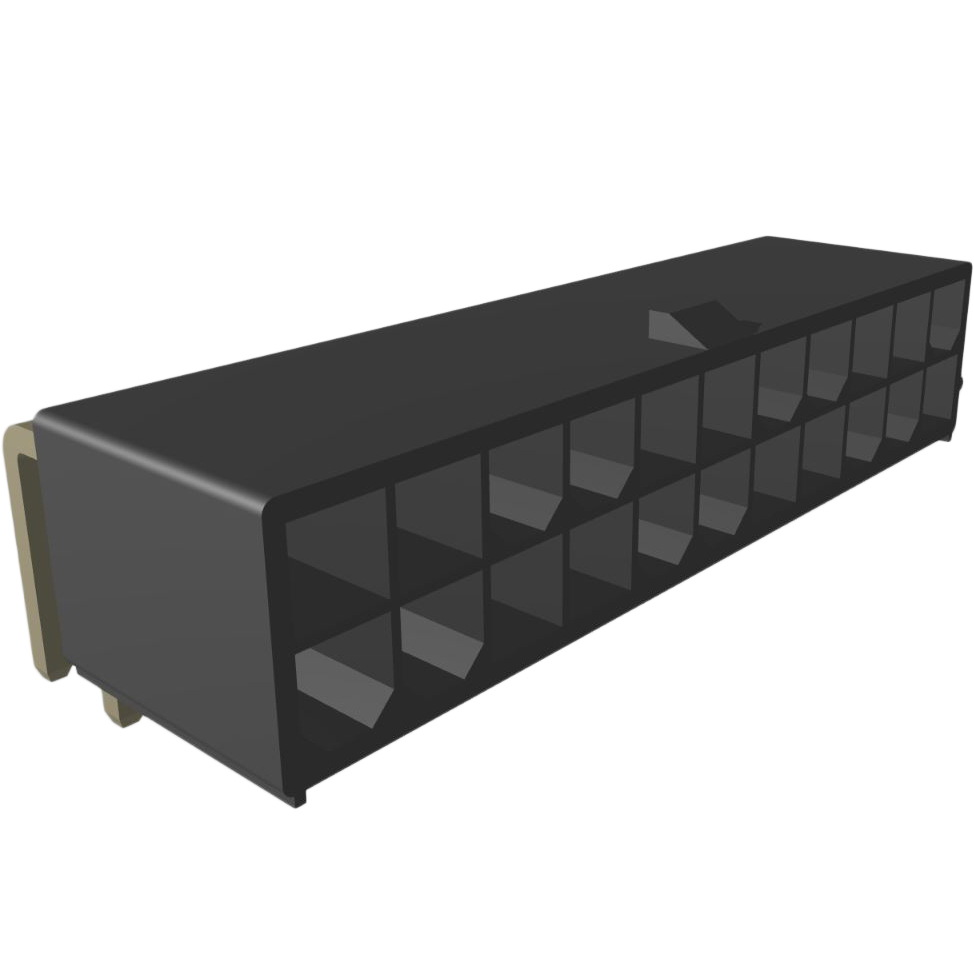

The Amphenol ICC (FCI) part number 10131318-22121G0LF is a Minitek Pwr 4.2 High Current connector header designed for power-to-board applications. It features a 22-position configuration with a 4.2 mm pitch and supports a current rating of 12.5 A per contact. The component utilizes a double row arrangement and is constructed from copper contacts with gold plating. It employs a right-angle through-hole mounting style, allowing for vertical board integration. The housing is made of natural-colored insulating material, ensuring compliance with RoHS standards.

Feature Summary

• High-current capability within the Minitek Pwr 4.2 series
• Right-angle through-hole mounting for space-efficient PCB layouts
• Gold-plated copper contacts for reliable conductivity

Applications

• Power distribution in industrial equipment
• Server and storage system power interfaces
• Telecommunications infrastructure power supplies

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and termination type. Ensure the selected variant matches the required pin count and mechanical orientation. Confirm RoHS compliance status prior to final procurement. Cross-reference the datasheet for precise dimensional tolerances and mating force requirements to ensure assembly compatibility.

Selection Notes

Select this component when high current capacity is required in a compact form factor. The right-angle design facilitates efficient board stacking or edge connections. Verify that the 4.2 mm pitch aligns with the target PCB footprint. Consider the gold plating for environments requiring enhanced corrosion resistance compared to tin variants.

Part Context

This connector belongs to the Minitek Pwr 4.2 series, engineered for demanding power delivery scenarios. The series offers various position counts and mounting angles to suit diverse electronic designs. The 22-position variant provides a balanced solution for moderate power channels while maintaining standard spacing.

Replacement Considerations

Compatible substitutes include other Minitek Pwr 4.2 headers with identical 22-position counts and right-angle configurations. Verify that alternative parts maintain the same 12.5 A current rating and 4.2 mm pitch. Ensure mating interface compatibility with corresponding receptacles.
