Product Detailed Parameters

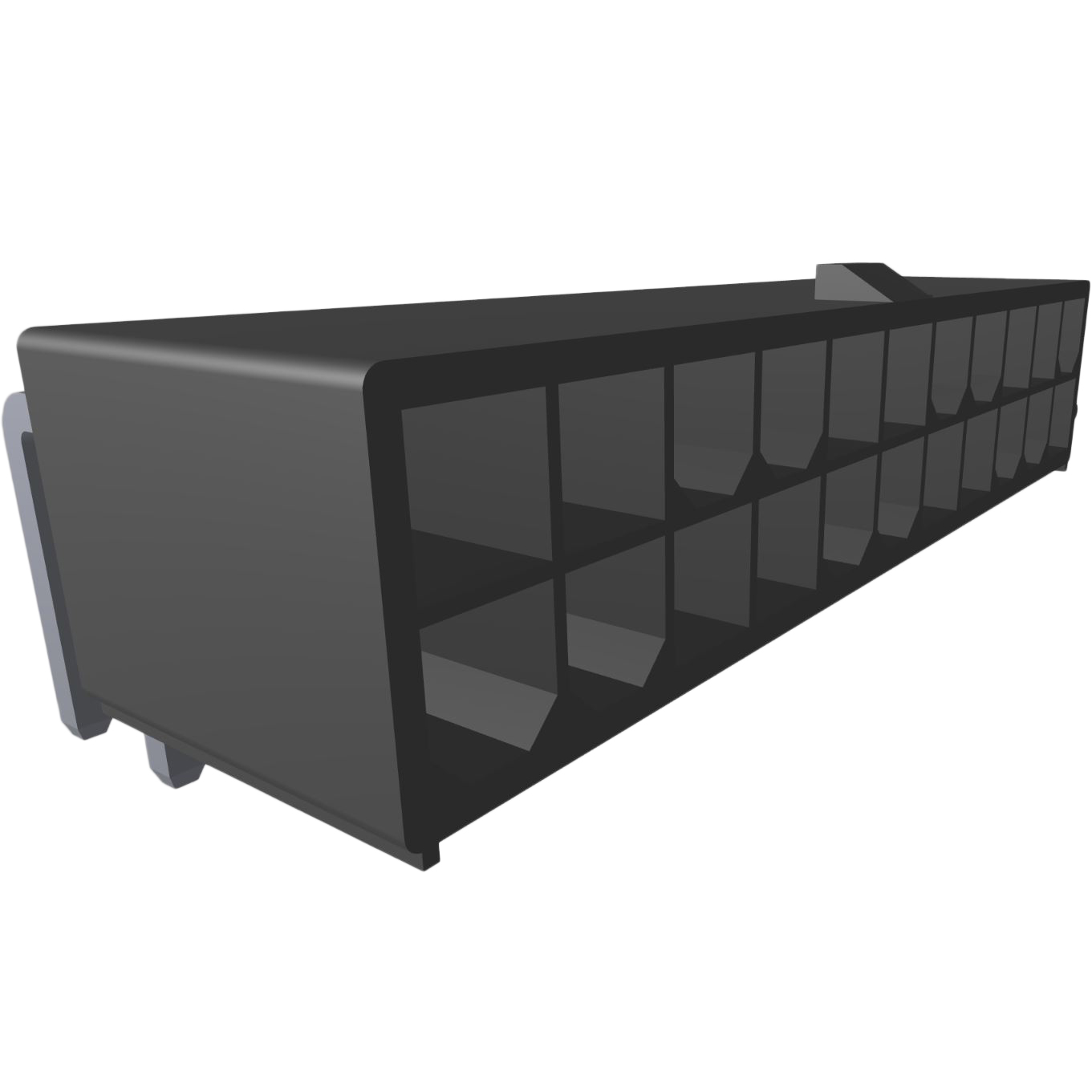

- Description：CONN HEADER R/A 22POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：22
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview
The Amphenol ICC (FCI) part number 10131318-2222100LF is a Minitek Power 4.2 series power-to-board header connector. It features a 12-position configuration with a 4.2 mm pitch, designed for vertical through-hole mounting. The connector utilizes tin-plated copper contacts and a black nylon 6.6 housing. It supports a current rating of 12.5 A and a voltage rating of 600 VAC, operating within a temperature range of -40°C to +105°C. This double-row header provides reliable electrical connections for high-power applications.
Feature Summary
- Double-row vertical header design for compact power distribution
- High current capacity suitable for demanding power applications
- Robust construction with tin-plated contacts and durable polymer housing
Applications
- Server and storage equipment power distribution
- Industrial control system interconnects
- Telecommunications infrastructure power modules
Procurement Notes
Verify the specific ordering suffix to confirm contact plating and housing color variations. Ensure compatibility with mating receptacles from the same Minitek Power 4.2 family. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process before finalizing procurement orders.
Selection Notes
Select this component when a 12-position, 4.2mm pitch vertical header is required. Consider the 12.5A current rating and 600VAC insulation capabilities for circuit design. Verify that the through-hole mounting style aligns with the PCB layout constraints and thermal management needs of the target application environment.
Part Context
This connector belongs to the Minitek Power 4.2 series by Amphenol ICC (FCI), a line specialized in high-density power solutions. The series offers various pin counts and configurations to support diverse board-to-board and cable-to-board power transmission requirements across industrial and data communication sectors.
Replacement Considerations
Direct substitutes must match the 12-position count, 4.2mm pitch, and vertical orientation. Verify equivalent current ratings and material specifications. Cross-reference with other manufacturers offering similar power header arrays if availability is constrained.
