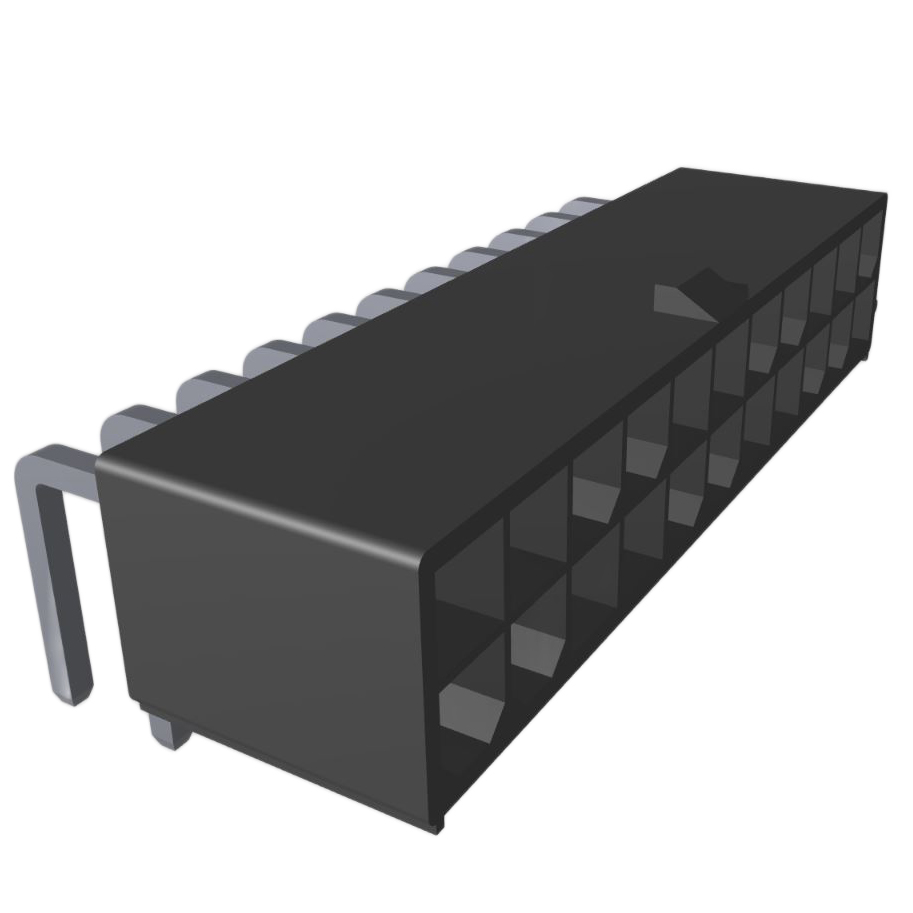

10131318-22221G0LF

Description：CONN HEADER R/A 22POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:591485258923 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 22POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：22
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.404" (10.26mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：80.0µin (2.03µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：Glow Wire Compliant
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10131318-22221G0LF

Overview

The Amphenol ICC (FCI) 10131318-22221G0LF is a Minitek Power4.2 series power connector designed for board-to-board applications. It features a 4.2 mm pitch and supports 22 positions in a dual-row configuration. The component utilizes copper contacts with gold plating and is rated for 12.5 A current. It operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 1 GOhms.

Feature Summary

Dual-row header design for high-density power distribution
Gold-plated copper contacts ensure reliable conductivity
Right-angle through-hole termination for secure mounting

Applications

Server and storage system power interfaces
Data center infrastructure connections
High-current board-to-board power routing

Procurement Notes

Verify the specific suffix against official Amphenol documentation to confirm contact plating thickness and housing material variations. Confirm availability status directly with authorized distributors as lead times may vary. Ensure the selected variant matches the required pin count and orientation for the target PCB layout.

Selection Notes

Select this component when a 4.2 mm pitch power connector is required for high-current applications. Verify that the 12.5 A rating meets the circuit requirements. Ensure the right-angle form factor aligns with the mechanical constraints of the assembly.

Part Context

This part belongs to the Minitek Power4.2 family, which provides robust power solutions for demanding environments. The series is characterized by its durable LCP housing and high current carrying capacity, making it suitable for industrial and IT infrastructure applications requiring reliable power delivery.
