Product Detailed Parameters
- Description：CONN HEADER VERT 2POS
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

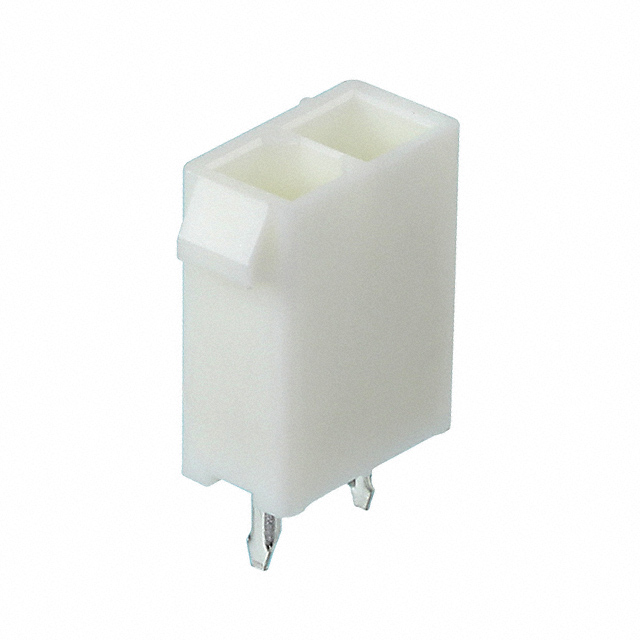

The Amphenol ICC (FCI) part number 10131319-0211100LF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features a 4.2 mm pitch and contains two positions with tin-plated copper contacts. The connector supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. It utilizes a natural-colored housing and offers an insulation resistance of 1 GOhms.
Feature Summary
- Double-row vertical header configuration for high-density power distribution
- Tin-plated copper contacts ensure reliable electrical conductivity
- Natural-colored insulating housing provides visual identification
Applications
- Power distribution in server infrastructure
- Data storage system interconnects
- Industrial equipment power supply connections
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation, as variations in plating or packaging may exist. Confirm availability through authorized distributors, noting that some listings indicate factory special order status. Ensure compatibility with mating receptacles from the same Minitek Power4.2 series before procurement.
Selection Notes
Select this component when a low-profile, double-row power header is required for board-to-board connections. The 4.2 mm pitch accommodates higher current loads compared to smaller pitches. Verify that the vertical mounting style fits the mechanical constraints of the assembly and that the tin plating meets environmental requirements.
Part Context
This component belongs to the MinitekPwr 4.2 series by Amphenol FCI, a line specialized in power connectors. The series is engineered for robust performance in demanding environments, offering various position counts and termination styles. It serves as a critical interface for delivering power efficiently in compact electronic systems.
Replacement Considerations
Compatible substitutes include other variants within the 10131319 series, such as 10131319-041220PLF or 10131319-122110RLF, provided they match the required pin count and pitch. Always verify mechanical dimensions and electrical ratings before substituting.
