10131319-02111G0LF

Overview

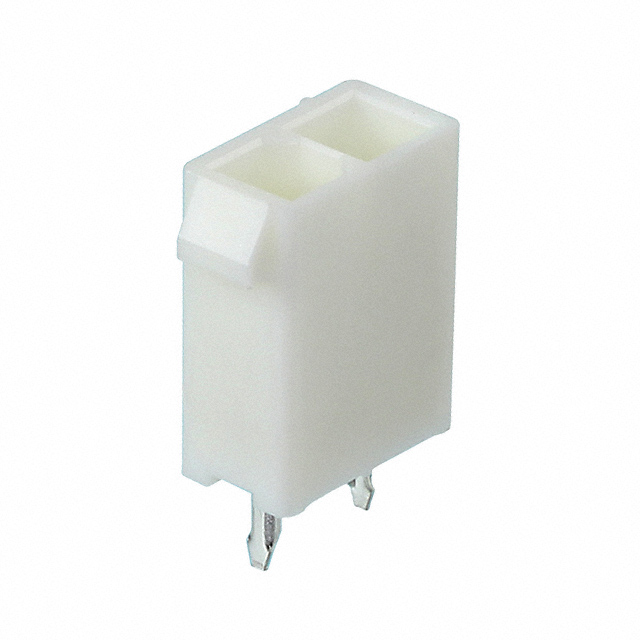

The Amphenol ICC (FCI) 10131319-02111G0LF is a rectangular power connector belonging to the MinitekPwr 4.2 series. It features a 2-position configuration with a 4.2 mm pitch and vertical mounting orientation. The connector utilizes copper alloy contacts with gold plating for reliable conductivity. Designed for board-to-board power distribution, it supports a rated current of 12.5 A and operates within a temperature range of -40°C to +105°C. The housing is constructed from nylon with a natural color finish, ensuring UL compliance and high insulation resistance.

Feature Summary

• Vertical board-to-board power interconnect solution
• High current capacity of 12.5 A per contact
• Gold-plated copper alloy contacts for durability
• UL recognized insulation material

Applications

• Server and storage system power distribution
• Data center infrastructure equipment
• Networking hardware power modules
• Industrial control systems requiring robust power connections

Procurement Notes

Verify component authenticity through authorized Amphenol distributors or official channels. Confirm that the specific suffix matches the required gold plating and housing specifications. Check for RoHS compliance status as manufacturing processes may vary by production batch. Ensure compatibility with mating receptacles from the same MinitekPwr 4.2 family before integration into design.

Selection Notes

Select this model when a low-profile, high-current vertical power connection is required. The 4.2 mm pitch allows for adequate spacing in power-dense applications. Consider the 12.5 A rating against total system load requirements. Verify that the vertical orientation fits within the mechanical envelope constraints of the target PCB layout.

Part Context

This component is part of the MinitekPwr 4.2 series, designed for high-reliability power applications. It complements other positions variants in the 10131319 series, offering scalable pin counts for different power needs. The series is widely used in IT and datacom sectors where stable power delivery is critical for system uptime and performance.

Replacement Considerations

Direct substitutes include other 2-position, 4.2 mm pitch vertical headers from the MinitekPwr 4.2 series. Ensure any replacement maintains the 12.5 A current rating and vertical mounting style. Cross-reference with Amphenol's official cross-reference guide for equivalent parts with identical mechanical and electrical specifications.
