10131319-0221100LF

Overview

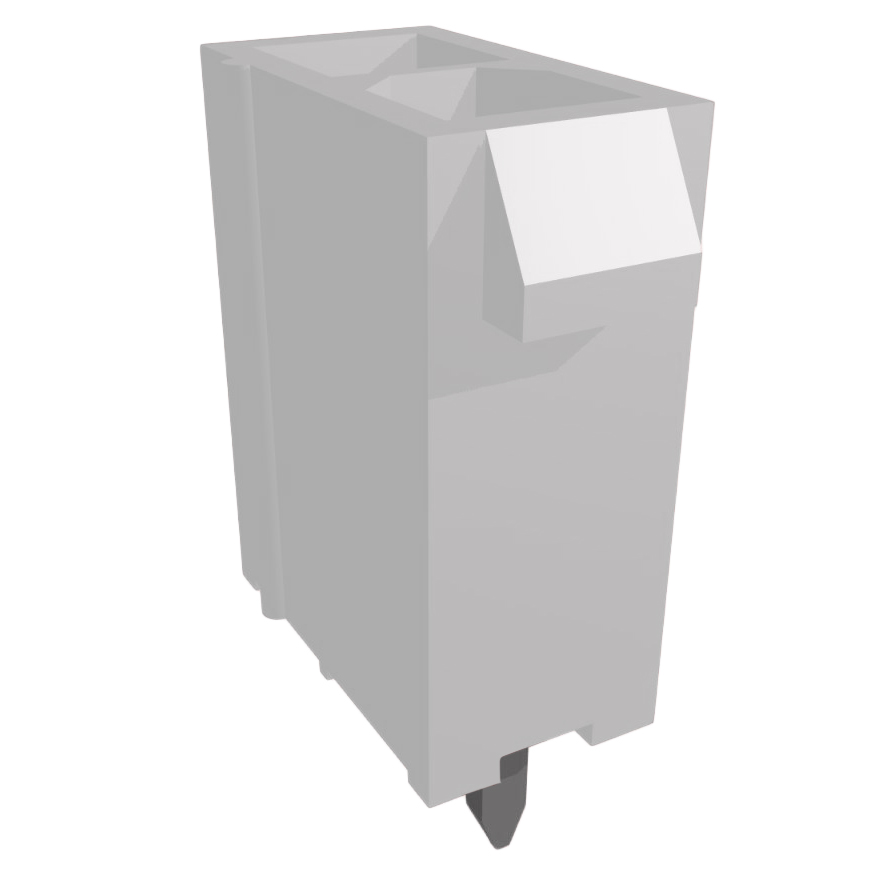

The Amphenol ICC (FCI) part number 10131319-0221100LF is a vertical power-to-board header connector belonging to the Minitek Pwr 4.2 High Current series. It features a 2-position configuration with a 4.2 mm pitch and operates within a temperature range of -40°C to +105°C. The contacts are rated for up to 13.5 A per contact, utilizing gold-plated copper terminals housed in a natural-colored thermoplastic insulator. Designed for high-density power applications, this component supports surface-mount termination and meets UL94 V-0 flammability standards.

Feature Summary

• High current capacity suitable for power-dense designs
• Robust construction ensuring reliable electrical performance
• Vertical orientation for efficient board space utilization

Applications

• Power distribution systems
• Data communication equipment
• Telecommunications infrastructure

Procurement Notes

Verify the specific ordering suffix to ensure correct packaging and plating options match project requirements. Confirm that the selected variant aligns with the intended current rating and thermal management strategy. Cross-reference the manufacturer's latest documentation to validate compliance with RoHS directives and material specifications before finalizing procurement orders.

Selection Notes

Select this connector when designing systems requiring high current handling in a compact form factor. Ensure the mating interface accommodates the specified 4.2 mm pitch and vertical height constraints. Evaluate thermal dissipation needs against the 13.5 A per contact rating to determine if additional cooling measures are necessary for continuous operation.

Part Context

This component is part of the Minitek Pwr 4.2 series, engineered by Amphenol ICC (FCI) for demanding industrial and commercial environments. The series emphasizes durability and signal integrity, catering to sectors such as data storage, servers, and medical instrumentation where reliable power delivery is critical.

Replacement Considerations

Direct substitutes include other Minitek Pwr 4.2 headers with matching pin counts and pitch dimensions. Verify compatibility with existing PCB footprints and mating cable assemblies before transitioning to alternative part numbers.
