Product Detailed Parameters

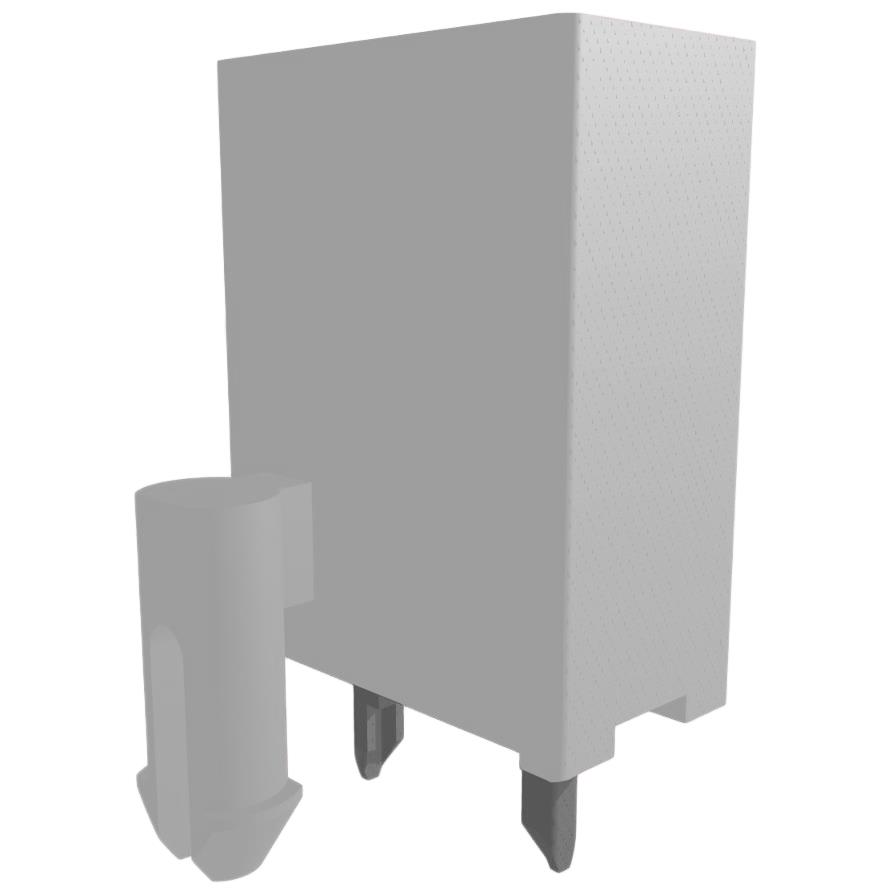

- Description：10131319-022110PLF-MTK4.2 DR 02P
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-022110PLF is a Minitek Pwr 4.2 Higher Current Connectors (HCC) header designed for power-dense applications. It features a 2-row, 4-position configuration with a 4.2 mm pitch and vertical board mount orientation. The contacts are made of copper alloy with gold plating, rated at 12.5 A per contact and 600VAC/DC. Operating temperature ranges from -40°C to +105°C. Insulation resistance is 1 GOhms. The housing is black polyamide (PA66).
Feature Summary
- Designed for high current density applications with up to 13.5A per contact capability.
- Features a board lock mechanism for secure installation.
- Utilizes gold-plated copper alloy contacts for reliable conductivity.
Applications
- Power distribution in server systems
- Storage device connections
- Communication equipment power interfaces
Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to ensure correct contact finish and packaging. Confirm lead times as factory special orders may apply. Check regional availability through authorized distributors. Ensure compatibility with mating receptacles in the Minitek Pwr 4.2 series. Validate insulation material specifications for thermal requirements.
Selection Notes
Select this component when a 4.2mm pitch power connector is required for vertical mounting. Consider the 12.5A rating and 600VAC/DC voltage limit for circuit design. Verify that the black PA66 housing meets environmental and color coding needs. Ensure the PCB layout accommodates the 2-row, 4-position footprint and board lock feature.
Part Context
This part belongs to the Minitek Pwr 4.2 HCC series by Amphenol FCI. The series targets power-dense environments like servers and storage. It offers robust electrical performance with high current ratings. The product line includes various position counts and configurations for flexible system integration.
Replacement Considerations
Direct substitutes within the same series include 10131319-041220PLF (4-position, Gold) and 10131319-122110RLF (12-position, Tin). Verify pin count and plating differences before substitution.
