Product Detailed Parameters
- Description：CONN HEADER VERT 2POS
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray,Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

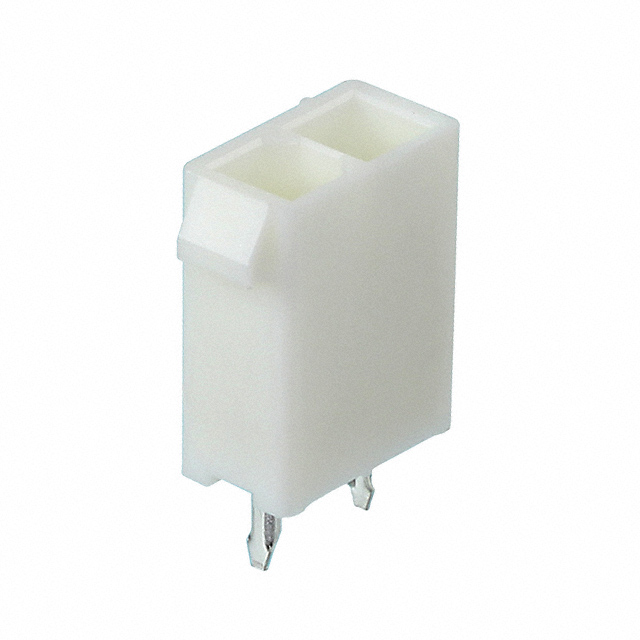

The Amphenol ICC (FCI) 10131319-02211G0LF is a Minitek Power4.2 High Current header connector designed for power-to-the-board applications. It features a 2-position configuration with a 4.2 mm pitch and double row arrangement. The component utilizes through-hole vertical mounting and copper contacts plated with tin. Rated for 12.5 A current and 600 VAC voltage, it operates within a temperature range of -40°C to +105°C.
Feature Summary
- Supports high current power distribution via the Minitek Power4.2 series design
- Provides reliable electrical connections through double row through-hole termination
- Ensures durability in demanding environments with an extended operating temperature range
Applications
- Industrial equipment power distribution systems
- Factory automation control units
- Heavy machinery electronic interfaces
Procurement Notes
Verify the specific contact plating finish against project requirements, as datasheet descriptions may vary between tin and gold options for similar part numbers. Confirm that the through-hole vertical orientation matches the PCB layout constraints. Ensure the 4.2mm pitch aligns with existing board spacing standards to prevent mechanical interference during assembly.
Selection Notes
Select this component when a robust, high-current solution is required for vertical board mounting. The 4.2mm pitch offers wider spacing compared to standard signal connectors, reducing arcing risks. Verify that the 12.5A rating meets the circuit load demands. Consider the double-row format if higher pin density within the same footprint is necessary for future scalability.
Part Context
This connector belongs to the Minitek Pwr 4.2 High Current series by Amphenol FCI. The series is engineered for industrial interconnects requiring high reliability. The 10131319 prefix indicates the specific housing and contact geometry for the 4.2mm pitch family, while suffixes define position count and plating.
Replacement Considerations
Direct substitutes include other 2-position, 4.2mm pitch, double-row headers from Amphenol or compatible manufacturers. Ensure replacement parts match the 12.5A current rating and through-hole vertical profile. Verify that the insulation material and temperature ratings are equivalent to maintain system safety compliance.
