Product Detailed Parameters

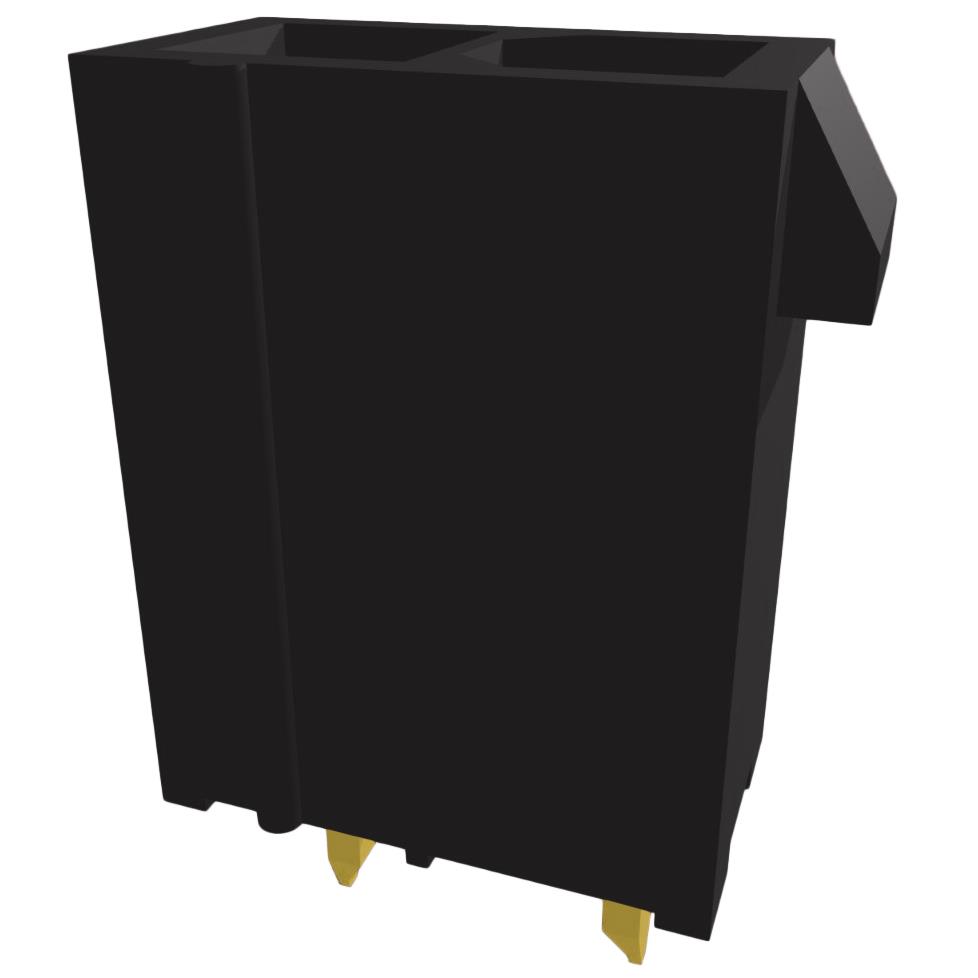

- Description：CONN HEADER VERT 2POS
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10131319-02221G0LF is a Minitek Pwr 4.2 High Current power connector designed for board-to-board applications. It features a 2-position header with male pin contacts and a 4.20mm pitch. The unit utilizes through-hole termination and operates within a temperature range of -40°C to +105°C. Contact materials consist of copper alloy with tin plating on the mating surface. The housing is constructed from black insulating material rated UL94 V-0 for flammability.
Feature Summary
- High current capability within the Minitek Pwr 4.2 series
- Through-hole termination style for secure PCB mounting
- Tin-plated copper alloy male pin contacts
Applications
- Industrial equipment power distribution
- Factory automation systems
- Heavy machinery control units
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct contact finish and insulation material specifications. Confirm that the tin-plated variant aligns with your assembly requirements, as other suffixes may indicate different plating or housing compositions.
Selection Notes
Select this component when a 4.20mm pitch high-current header is required for through-hole assembly. Ensure the operating environment stays within the specified -40°C to +105°C range. Verify that the 2-position configuration meets the circuit design needs without requiring additional rows or positions.
Part Context
This part belongs to the Minitek Pwr 4.2 series, which provides high-current interconnect solutions for industrial and commercial applications. The series supports various position counts and termination styles, offering flexibility for power distribution designs in demanding environments such as energy generation and transportation systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guides for verified alternatives.
