Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

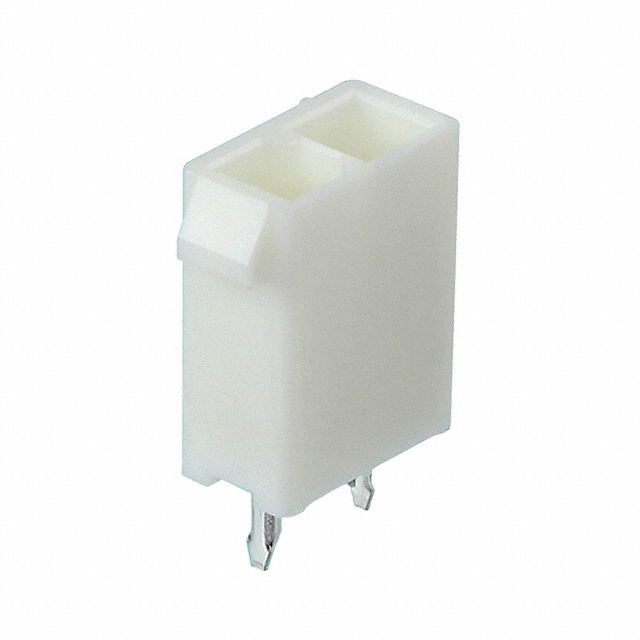

The Amphenol ICC (FCI) part number 10131319-024110PLF is a Minitek Power 4.2 series power-to-board connector header. It features a vertical through-hole mounting style with two positions and a 4.2 mm pitch. The contacts are made of copper alloy with gold plating, rated for 12.5 A current. The housing is constructed from natural polyamide (PA66), offering UL94 V-0 flammability rating. Operating temperature ranges from -40°C to +105°C.
Feature Summary
- Vertical through-hole design for direct board integration
- Gold-plated copper alloy contacts for reliable conductivity
- High-current capability within the Minitek Power 4.2 family
Applications
- Power distribution in industrial equipment
- Server and storage system power interfaces
- Telecommunications infrastructure power connections
Procurement Notes
Verify the PLF suffix indicates lead-free compliance against specific project requirements. Confirm that the two-position configuration matches the target PCB footprint. Ensure the vertical orientation aligns with mechanical constraints. Validate that the 4.2 mm pitch is compatible with mating receptacles or cables.
Selection Notes
Select this component when a low-profile, high-current vertical connection is required. The 4.2 mm pitch supports higher currents compared to smaller pitches. Verify that the PA66 insulation material meets environmental standards. Consider the 12.5 A rating relative to total load requirements.
Part Context
This connector belongs to the Minitek Power 4.2 series, designed for power-dense applications. It provides a robust solution for transferring significant current between boards or to cables. The series is known for its reliability in demanding environments, supporting various position counts while maintaining consistent electrical performance.
Replacement Considerations
Check for other Minitek Power 4.2 variants with different position counts if more connections are needed. Verify compatibility with mating parts from the same series. Ensure any substitute maintains the same vertical orientation and pitch specifications.
