Product Detailed Parameters
- Description：CONN HEADER VERT 4POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

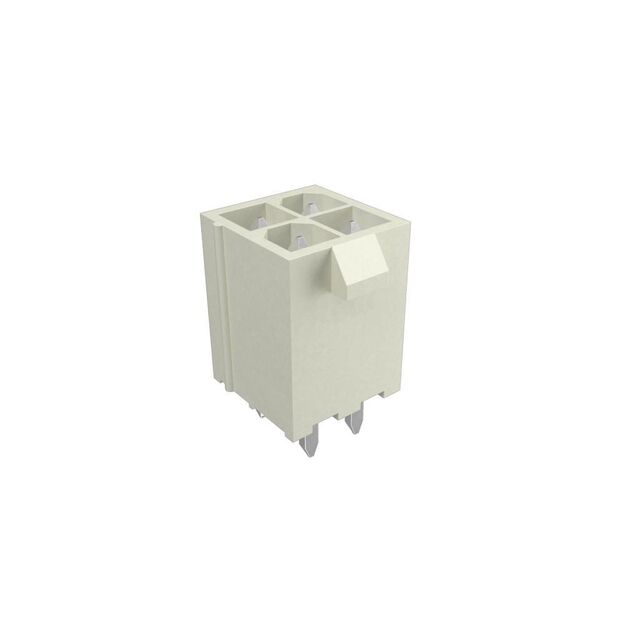

The Amphenol ICC (FCI) part number 10131319-0411100LF is a Minitek Power 4.2 series power-to-board connector header. It features a 4-position configuration with a 4.2 mm pitch and double row arrangement. The contacts are made of copper with gold plating for reliable conductivity. Designed for vertical surface mount installation, this component supports a current rating of 12.5 A per contact. It operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhms.
Feature Summary
- Double row vertical header design for compact power distribution
- Gold-plated copper contacts ensure durable electrical performance
- High current capacity suitable for board-level power applications
Applications
- Server and storage equipment power distribution
- Telecommunications infrastructure boards
- Industrial control system power interfaces
Procurement Notes
Verify the specific suffix requirements against official Amphenol documentation before ordering. Confirm that the gold plating specification matches the intended application environment. Ensure compatibility with existing PCB footprint designs and mating connector specifications. Check for any recent product change notices affecting material composition or packaging.
Selection Notes
Select this component when a low-profile, high-current power connection is required in a double-row format. The 4.2 mm pitch allows for robust spacing while maintaining a compact footprint. Consider the vertical orientation for direct board mounting. Evaluate the thermal operating limits to ensure suitability for the target enclosure environment.
Part Context
This connector belongs to the Minitek Power 4.2 family, designed for high-reliability power delivery in dense electronic assemblies. The series offers various position counts and plating options to meet diverse industrial and communication standards. It represents a standardized solution for board-to-board power interconnects requiring stable performance under mechanical stress.
Replacement Considerations
Direct substitutes include other 4-position, 4.2mm pitch, double-row headers from compatible manufacturers if pinout and mechanical dimensions match exactly. Verify that alternative parts maintain the same 12.5A current rating and vertical mounting profile.
