10131319-04111G0LF

Overview

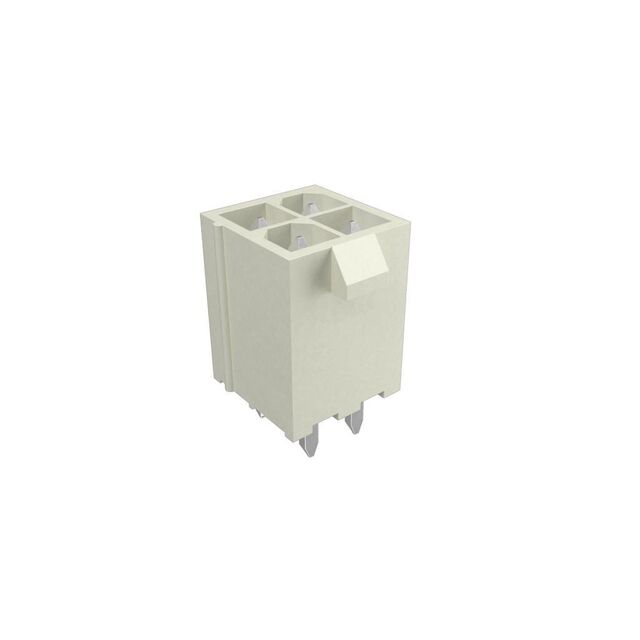

The Amphenol ICC (FCI) 10131319-04111G0LF is a vertical power-to-board header from the Minitek Pwr 4.2 High Current Base series. It features a 4-position configuration with a 4.2 mm pitch and supports up to 13.5 A per contact. The connector utilizes copper contacts with gold plating and a natural housing, operating within a temperature range of -40°C to +105°C.

Feature Summary

• Designed for power-dense applications requiring high current capacity
• Vertical through-hole mounting for direct board integration
• Gold-plated copper contacts ensure reliable electrical performance

Applications

• High current power distribution systems
• Server and storage equipment power interfaces
• Industrial control board connections

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm contact plating thickness and housing material variations. Ensure compatibility with mating receptacles within the same Minitek Pwr 4.2 family. Confirm lead times as these components may be subject to factory special order requirements.

Selection Notes

Select this component when a 4.2 mm pitch vertical header is required for high-current power delivery. Compare against other positions in the 10131319 series to match circuit density needs. Verify that the 13.5 A rating aligns with the system's thermal and electrical load requirements.

Part Context

This part belongs to the Minitek Pwr 4.2 High Current Base series by Amphenol FCI. The series provides robust power solutions for demanding environments, offering various position counts and plating options while maintaining consistent mechanical dimensions and mounting characteristics across the product line.

Replacement Considerations

Compatible substitutes include other variants within the 10131319 series, such as 10131319-08111G0LF or 10131319-20111G0LF, provided the pin count matches the design requirement. Ensure identical pitch and current ratings are maintained during substitution.
