Product Detailed Parameters

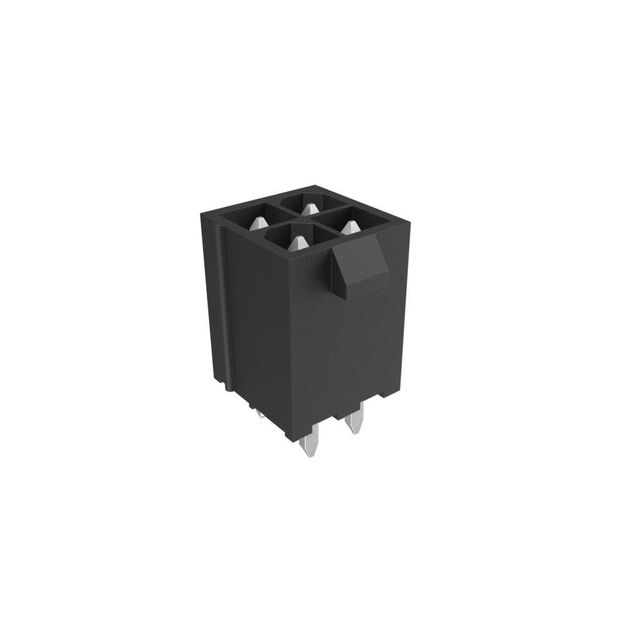

- Description：CONN HEADER VERT 4POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-0412100LF is a Minitek Power4.2 series power-to-board connector header. It features a 4.2 mm pitch and a dual-row vertical configuration with four positions. The contacts are constructed from copper and finished with tin plating to ensure reliable conductivity. Designed for surface-mount or through-hole applications, this component supports a current rating of 12.5 A per contact. It operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhms.
Feature Summary
- Dual-row vertical header design for high-density power distribution
- Tin-plated copper contacts for corrosion resistance and conductivity
- Robust construction suitable for industrial and server environments
Applications
- Server and storage equipment power distribution
- Industrial instrumentation power interfaces
- Data communication hardware connections
Procurement Notes
Verify the specific termination style and reel quantity requirements directly with the manufacturer or authorized distributors. Confirm that the tin-plated variant matches your assembly process constraints. Ensure compatibility with mating receptacles in the Minitek Power4.2 family. Request updated lead times as these components may be subject to factory special order status.
Selection Notes
Select this component when a low-profile, high-current vertical header is required for board-to-board power transfer. The 4.2 mm pitch allows for substantial current handling compared to smaller signal connectors. Verify that the natural housing color and vertical orientation fit the mechanical layout. Ensure the operating environment stays within the specified thermal limits.
Part Context
This connector belongs to the Minitek Power4.2 family produced by Amphenol ICC (FCI). The series is engineered for robust power delivery in demanding electronic systems. Amphenol FCI specializes in interconnect solutions for data communications, industrial, and consumer markets, providing reliable connectivity options for complex circuit architectures.
Replacement Considerations
Compatible substitutes include other 4-position, 4.2 mm pitch dual-row headers from the same Minitek Power4.2 series, such as 10131319-04211GRLF. Ensure any replacement matches the vertical orientation and tin plating specification to maintain electrical and mechanical integrity.
