Product Detailed Parameters
- Description：CONN HEADER VERT 4POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

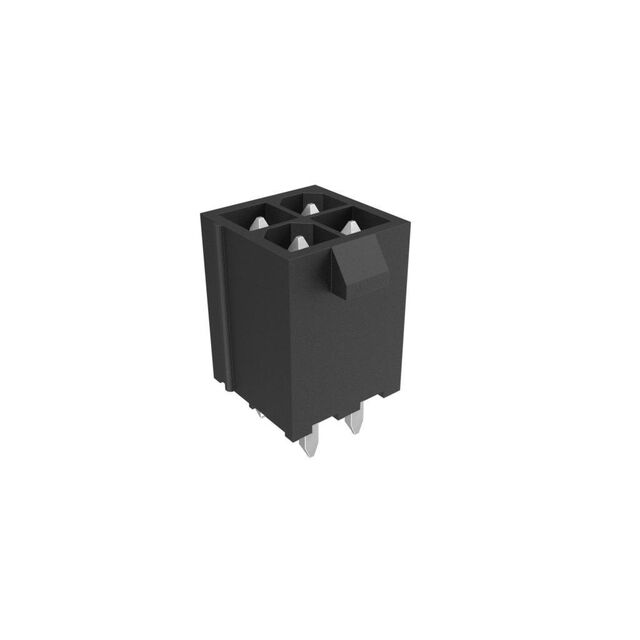

The Amphenol ICC (FCI) part number 10131319-04121G0LF is a vertical power connector header belonging to the Minitek Pwr 4.2 series. It features four positions with a 4.2 mm pitch and utilizes through-hole mounting for secure board attachment. The contacts are gold-plated copper alloy, rated for 12.5 A current and supporting an operating temperature range from -40°C to +105°C. Designed for high-current power distribution, this component ensures reliable electrical connections in demanding electronic assemblies.
Feature Summary
- Vertical pin configuration optimized for direct board insertion
- Gold-plated contact surfaces ensure stable conductivity
- High current capacity suitable for power delivery applications
Applications
- Power supply modules requiring robust interconnects
- Industrial equipment internal power distribution
- Consumer electronics high-current circuit boards
Procurement Notes
Verify the specific ordering suffix against the manufacturer's latest datasheet to confirm plating thickness and material specifications. Ensure compatibility with mating receptacles within the same Minitek Pwr 4.2 family. Confirm that the through-hole footprint matches the target PCB design guidelines provided by Amphenol ICC.
Selection Notes
Select this component when a vertical, high-current header is required for power-to-board architectures. The 4.2 mm pitch accommodates substantial conductors compared to signal-grade connectors. Consider the 12.5 A rating relative to thermal dissipation requirements in enclosed environments. Verify mechanical retention needs for through-hole assembly processes.
Part Context
This connector belongs to the Minitek Pwr 4.2 series, designed for high-current power applications. The series offers various position counts and termination styles. As part of the Amphenol ICC portfolio, it supports industrial and commercial markets requiring reliable power interconnection solutions with standardized form factors.
Replacement Considerations
Compatible mating receptacles include parts from the same Minitek Pwr 4.2 series, such as 10131319-04211GRLF or similar variants. Ensure identical pitch and row configuration for proper engagement. Cross-reference with other manufacturers' 4.2 mm pitch headers only if mechanical and electrical parameters match exactly.
