Product Detailed Parameters

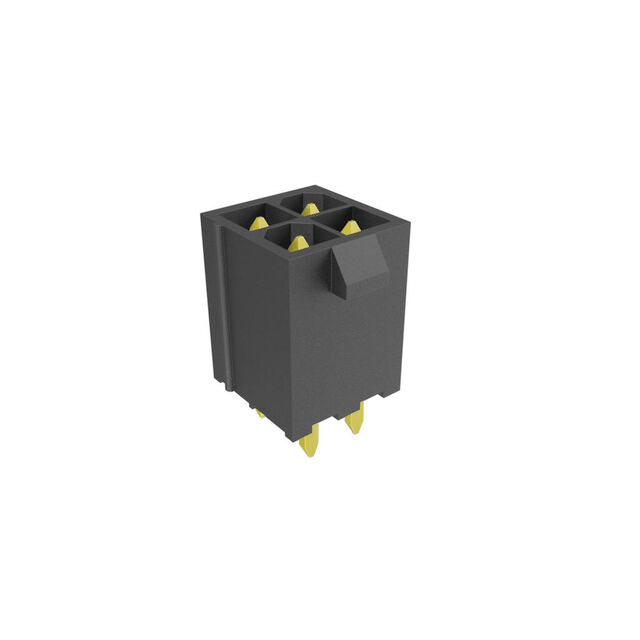

- Description：10131319-0412200LF-MTK 4.2 DR 4P
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) model 10131319-0412200LF is a vertical power-to-board header connector belonging to the Minitek Power4.2 series. It features a 4-position configuration with a 4.2 mm pitch and dual rows. The contacts are constructed from copper and terminated via surface mount technology. Designed for robust electrical connections, this component supports a current rating of 12.5 A per contact. It operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhms.
Feature Summary
- Vertical surface mount termination for direct board integration
- Dual-row layout providing four distinct signal or power paths
- High current capacity suitable for demanding power distribution applications
Applications
- Industrial equipment power distribution
- Factory automation systems
- Heavy machinery control boards
Procurement Notes
Verify the specific plating finish required for your application, as datasheets may list variations such as tin or gold over nickel for similar part numbers in this series. Confirm that the vertical header orientation matches your PCB assembly constraints. Ensure the 4.2 mm pitch aligns with your existing footprint design to prevent mating issues with corresponding receptacles.
Selection Notes
Select this component when a compact, high-current vertical interconnect is needed for power delivery on dense circuit boards. The 4.2 mm pitch allows for significant spacing between contacts, reducing arcing risks compared to finer pitches. Consider the operating temperature range and current derating requirements based on your specific enclosure environment and airflow conditions.
Part Context
This connector is part of the Minitek Power4.2 family produced by Amphenol ICC (formerly FCI). The series is engineered for industrial and commercial applications requiring reliable power transmission. The brand transition from Framatome Connectors International to Amphenol has maintained the product lineage under the Minitek trademark, ensuring continuity for existing designs.
Replacement Considerations
Cross-reference with part number 10131319-041220PLF if gold plating is preferred over standard finishes. Verify mechanical compatibility with mating sockets from the same Minitek Power4.2 series before substitution.
