10131319-0421100LF

Overview

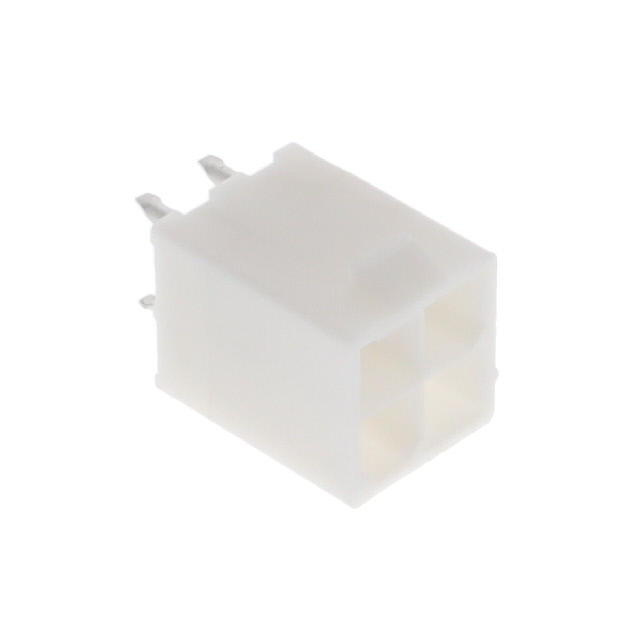

The Amphenol ICC (FCI) part number 10131319-0421100LF is a Minitek Pwr 4.2 High Current vertical through-hole header connector. It features a 4-position, 2-row configuration with a 4.2 mm pitch. The contacts are made of copper alloy and terminated via soldering. The housing is constructed from polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating. Operating temperature ranges from -40°C to +105°C.

Feature Summary

• Vertical board-to-board power connection design
• High current capacity rated at 12.5 A per contact
• Dual-row layout for compact power distribution

Applications

• Industrial equipment power distribution
• Factory automation systems
• IoT device power interfaces

Procurement Notes

Verify the specific plating finish on the component datasheet, as suffixes in this series often denote tin or gold options. Confirm that the vertical mounting style aligns with the PCB assembly requirements. Ensure the 4.2 mm pitch matches the target footprint exactly to prevent mechanical misalignment during insertion.

Selection Notes

Select this connector when high current carrying capability is required in a low-profile vertical form factor. The 4.2 mm spacing supports robust power delivery compared to finer pitch signal connectors. Verify insulation material compatibility with reflow soldering profiles and ensure the operating temperature range meets system environmental specifications.

Part Context

This component belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), designed for reliable power transmission in industrial and commercial electronics. The series emphasizes durability and ease of assembly through standard through-hole termination methods suitable for automated manufacturing processes.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
