Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

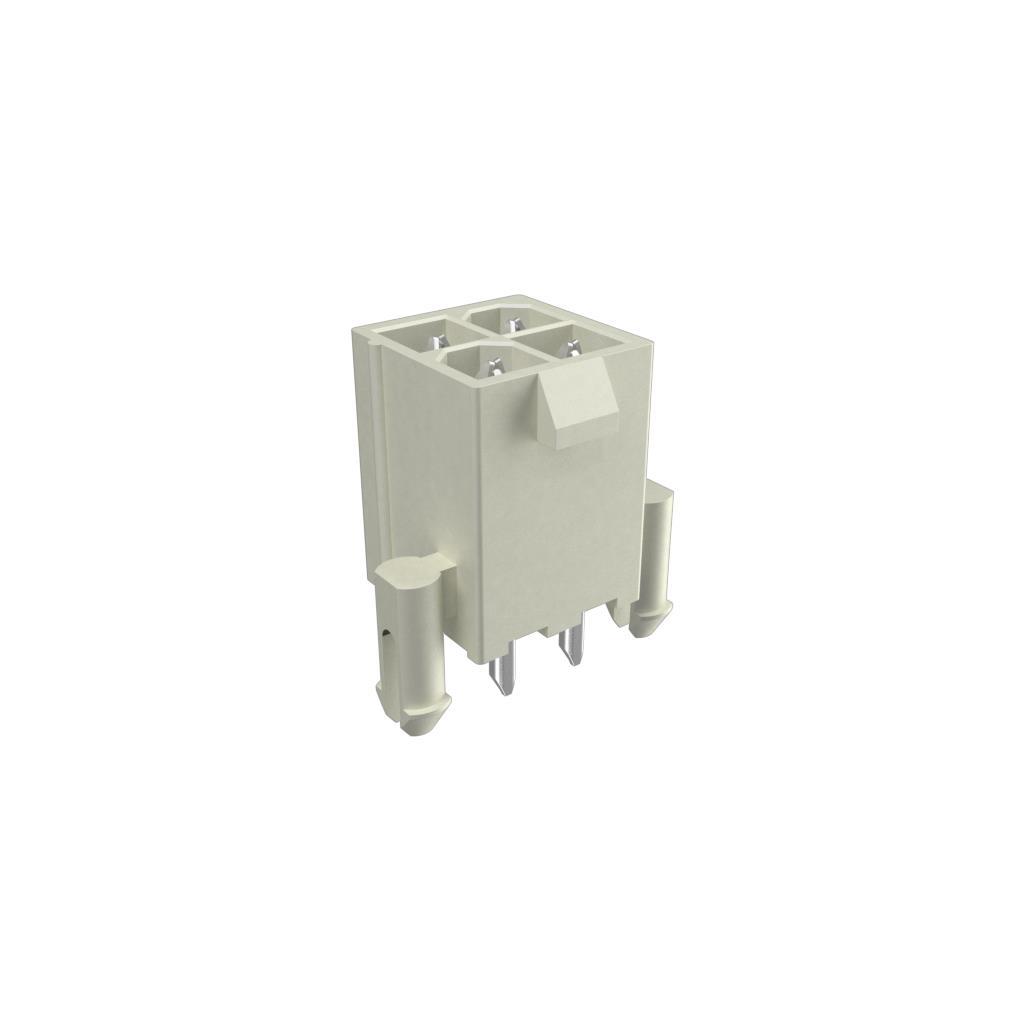

The Amphenol ICC (FCI) part number 10131319-042110PLF is a Minitek Power 4.2HCC DR VTH HDR connector designed for power-to-board applications. It features a 4-position, double-row configuration with a 4.2 mm pitch. The header utilizes copper alloy contacts with gold plating and a black nylon housing. Rated for 12.5 A current, it operates within a temperature range of -40°C to +105°C. This vertical through-hole component provides reliable electrical connections in demanding environments.
Feature Summary
- Double-row design supports high-density power distribution
- Gold-plated copper contacts ensure stable conductivity
- Vertical mounting angle facilitates board integration
- Nylon housing meets UL94 V-0 flammability standards
Applications
- Power distribution modules
- Server and storage equipment
- Industrial control systems
- Communication infrastructure
Procurement Notes
Verify the specific suffix 'PLF' against official Amphenol documentation to confirm lead-free compliance and material specifications. Ensure the selected variant matches the required 4-position count and double-row layout. Cross-reference the datasheet for precise mechanical dimensions and mating partner compatibility before finalizing procurement orders.
Selection Notes
Select this component when a 4.2 mm pitch power header is required for vertical board mounting. Consider the 12.5 A current rating and 105°C maximum operating temperature for thermal management. Verify that the double-row configuration fits the available PCB area and aligns with the mating receptacle or cable assembly requirements.
Part Context
This connector belongs to the MinitekPwr 4.2 series by Amphenol FCI, specialized for power delivery. The series offers robust solutions for data center and industrial applications. The 10131319-042110PLF specifically addresses needs for compact, high-current vertical interconnects with reliable signal integrity and mechanical durability.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 4-position count, and double-row vertical header format. Verify identical current ratings and contact materials. Consult Amphenol's official cross-reference guides for validated alternative part numbers.
