10131319-04211G0LF

Overview

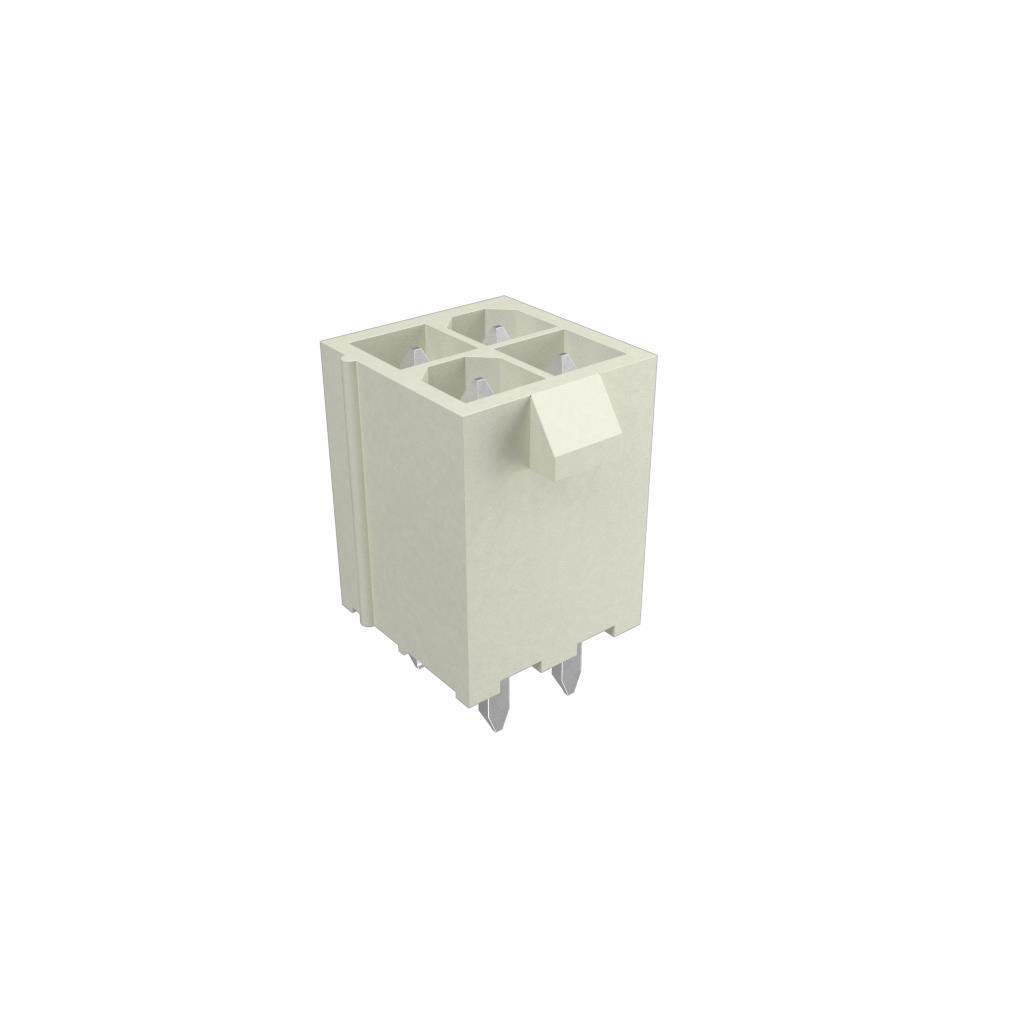

The Amphenol ICC (FCI) 10131319-04211G0LF is a Minitek Pwr 4.2 High Current vertical header connector designed for power-to-board applications. It features a 4-position, 2-row configuration with a 4.2 mm pitch. The connector supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. Constructed with copper contacts featuring gold plating and a black insulator, it offers an insulation resistance of 1 GOhms. This through-hole component is part of the Minitek series, providing reliable electrical connections in compact form factors.

Feature Summary

• High current capacity rated at 12.5 A for efficient power distribution
• Vertical through-hole mounting for secure PCB integration
• Gold-plated copper contacts ensure low contact resistance and durability

Applications

• Server and storage equipment power distribution
• Industrial control system power interfaces
• Communication infrastructure board-to-board connections

Procurement Notes

Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the selected variant matches the required pin count and plating specifications for your design. Ensure compatibility with existing assembly processes and thermal requirements during the sourcing phase.

Selection Notes

Select this connector when high current handling is required in a vertical power application. The 4.2 mm pitch allows for robust trace spacing on the PCB. Verify that the operating temperature range meets the environmental conditions of the target system. Consider the mechanical stability provided by the through-hole mounting style for vibration-prone environments.

Part Context

This component belongs to the Minitek Pwr 4.2 series, which focuses on high-current power delivery solutions. The series is characterized by its ability to handle significant amperage in space-constrained designs. It complements other FCI connectors used in data communication and industrial sectors requiring reliable power interfaces.

Replacement Considerations

Check for direct substitutes within the Minitek Pwr 4.2 family, such as different position counts like 10131319-08421G0LF. Ensure any replacement maintains the same 4.2 mm pitch and vertical orientation. Verify that alternative parts meet the same 12.5 A current rating and temperature specifications.
