10131319-04221G0LF

Overview

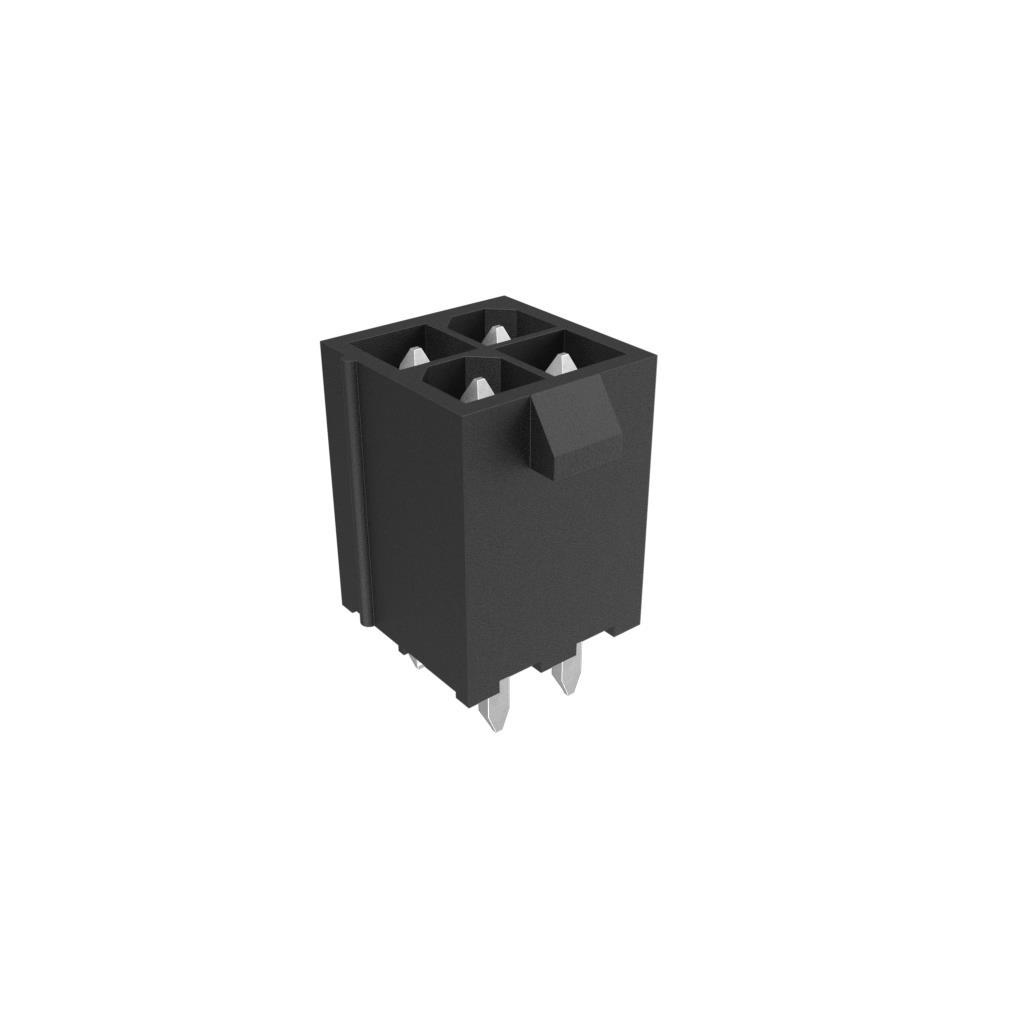

The Amphenol ICC (FCI) part number 10131319-04221G0LF is a vertical power-to-the-board header from the Minitek Pwr 4.2 series. It features 4 positions with a 4.2 mm pitch and utilizes tin-plated copper contacts. Designed for through-hole mounting, this double-row connector supports a current rating of 12.5 A and a voltage rating of 600 VAC. The housing is constructed from black polyamide material rated UL94 V-0. It operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 1 GOhms.

Feature Summary

• Vertical through-hole mounting configuration for direct board integration
• High current capacity of 12.5 A per contact for power distribution
• Robust UL94 V-0 rated polyamide housing for thermal stability
• Tin-plated copper contacts ensuring reliable electrical conductivity

Applications

• Server and storage system power distribution
• Telecommunications equipment power interfaces
• Industrial control board power connections
• Data center infrastructure power headers

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm plating thickness, flammability rating, and packaging type. Ensure compatibility with mating receptacles in the same Minitek Pwr 4.2 series. Cross-reference the complete part number with the latest datasheet to validate environmental ratings and mechanical dimensions before finalizing procurement specifications.

Selection Notes

Select this component when a vertical power interface with a 4.2 mm pitch is required. Confirm that the circuit design aligns with the 12.5 A current rating and 600 VAC voltage limit. Ensure the PCB layout accommodates the double-row through-hole footprint. Verify that the operating environment stays within the specified -40°C to +105°C range for optimal performance and longevity.

Part Context

This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), designed for high-power applications. The series offers various configurations including different pin counts and mounting styles. This specific model provides a compact solution for power delivery in space-constrained environments while maintaining high reliability standards for industrial and commercial electronics.

Replacement Considerations

Direct substitutes include other Amphenol FCI Minitek Pwr 4.2 series headers with identical 4-position vertical through-hole specifications. Verify mechanical fit and electrical ratings match exactly. No cross-brand replacements are confirmed without detailed engineering validation.
