Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

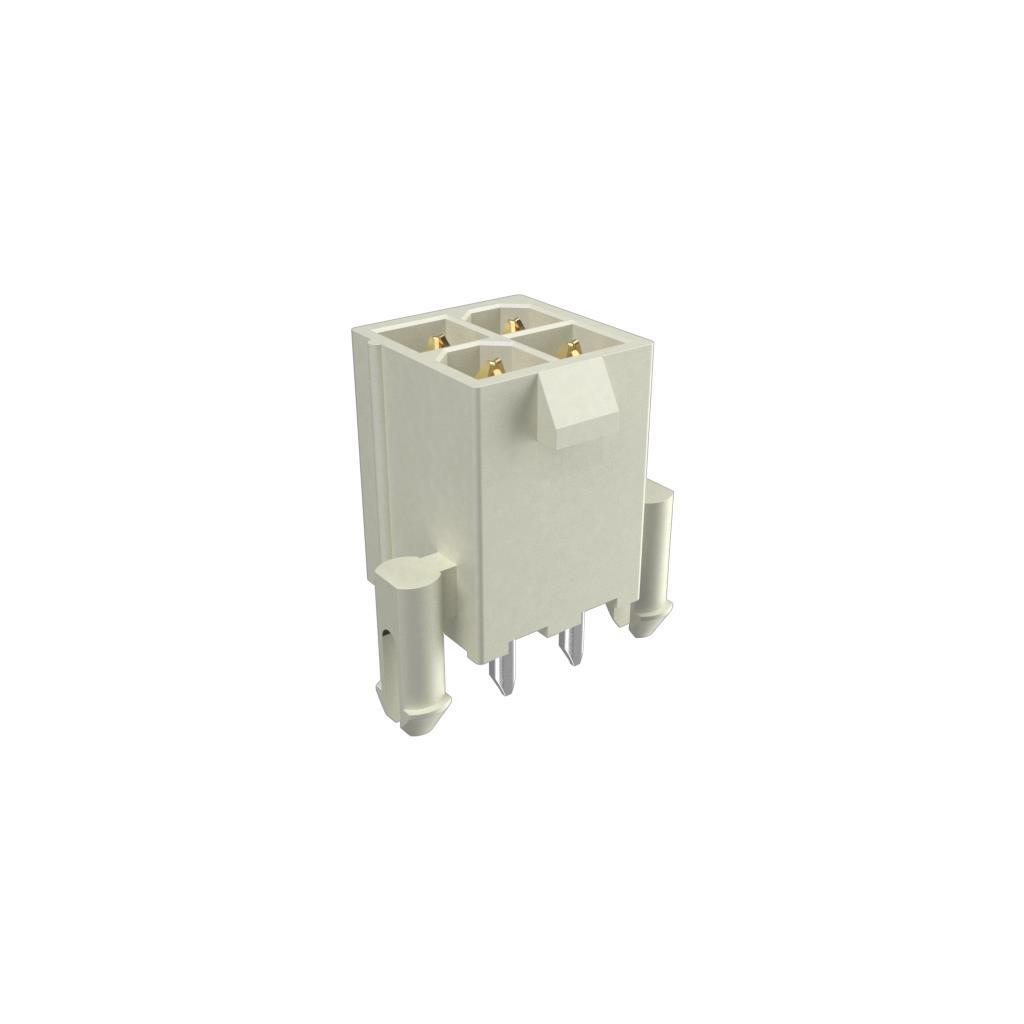

The Amphenol ICC (FCI) part number 10131319-044110PLF is a vertical board-to-board header connector belonging to the Minitek Power 4.2 series. It features a 4-position configuration with a 4.2 mm pitch and utilizes tin plating on its contacts. Designed for power distribution applications, this component supports a current rating of 12.5 A per contact. The connector operates within a temperature range of -40°C to +105°C and includes a natural-colored housing. It is manufactured by Amphenol FCI and complies with RoHS standards.
Feature Summary
- Vertical through-hole mounting design for direct PCB integration
- High-current capability suitable for power distribution networks
- Robust mechanical structure with natural insulating housing
Applications
- Industrial equipment power distribution
- Factory automation systems
- Power supply modules
Procurement Notes
Verify the specific ordering suffix and plating type directly with the manufacturer or authorized distributors before purchase. Confirm that the tin-plated variant matches the required environmental and electrical specifications for the target application. Ensure compatibility with mating receptacles from the same Minitek Power 4.2 series family.
Selection Notes
Select this component when a low-profile, high-current vertical header is required for board-to-board connections. The 4.2 mm pitch allows for significant spacing between contacts, which can aid in thermal management and voltage isolation. Verify that the 12.5 A current rating meets the circuit requirements and that the operating temperature range aligns with the system's environmental conditions.
Part Context
This connector is part of the Minitek Power 4.2 series, designed for robust power transmission in compact spaces. The series offers various pin counts and configurations to support diverse industrial and commercial power distribution needs. Amphenol FCI manufactures these connectors to meet stringent reliability standards for demanding electronic environments.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 4-position count, vertical orientation, and tin plating. Check for equivalent ratings from other manufacturers offering similar Minitek-style headers.
