Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

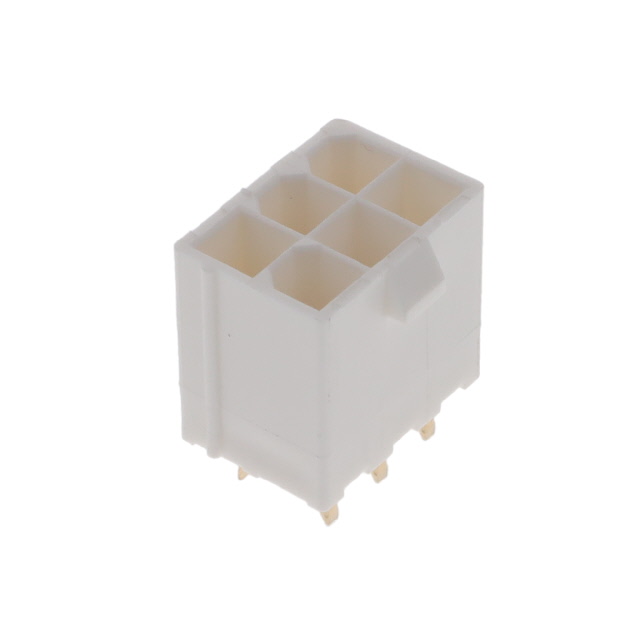

The Amphenol ICC (FCI) part number 10131319-0611100LF is a Minitek Power4.2 series power-to-board header connector. It features a 6-position, dual-row vertical through-hole design with a 4.2 mm pitch. The contacts are gold-plated copper, rated for 12.5 A current and operating within a temperature range of -40°C to +105°C. Insulation resistance is specified at 1 GOhms. This component is supplied in reel packaging.
Feature Summary
- Dual-row vertical configuration for high-density power distribution
- Gold-plated copper contacts ensure reliable conductivity and corrosion resistance
- Through-hole termination method provides secure mechanical mounting
Applications
- Power supply modules
- Industrial control systems
- Data communication equipment
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm contact plating and housing material specifications. Ensure compatibility with mating receptacles regarding pin count and row arrangement before procurement. Confirm availability status directly with authorized distributors as stock levels fluctuate.
Selection Notes
Select this connector when a robust, high-current vertical interface is required between a power source and a circuit board. The 4.2 mm pitch accommodates substantial conductors, while the gold plating supports environments requiring long-term stability. Verify that the PCB layout supports the dual-row through-hole footprint and thermal requirements.
Part Context
This component belongs to the Minitek Power4.2 family, designed for demanding power applications. It represents a standard solution for connecting power boards to main system boards in industrial and commercial electronics, offering a balance of current capacity and compact vertical integration.
Replacement Considerations
Consult the official datasheet for compatible mating receptacles and housings within the same Minitek Power4.2 series. Cross-reference with other manufacturers only if exact dimensional and electrical parameters match verified specifications.
FAQ
What is the current rating of the 10131319-0611100LF connector?
The connector has a current rating of 12.5 A per contact.
Does this connector feature surface mount or through-hole termination?
It utilizes a vertical through-hole termination method for PCB mounting.
