10131319-06111G0LF

Overview

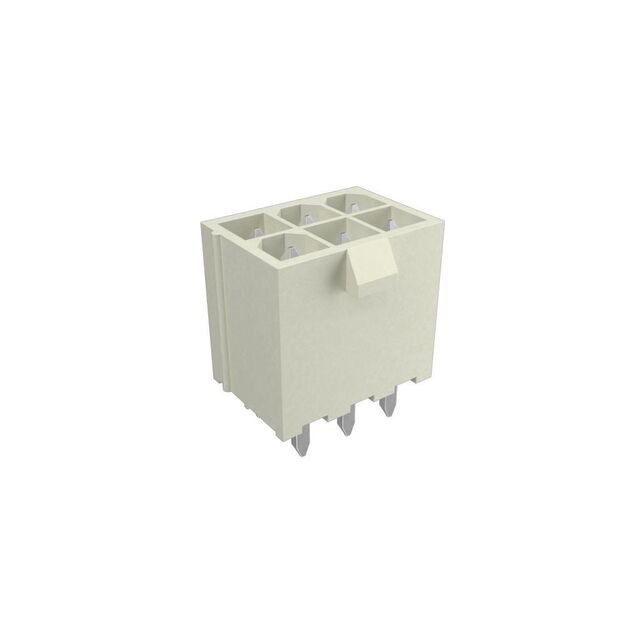

The Amphenol ICC (FCI) part number 10131319-06111G0LF is a Minitek Pwr 4.2 High Current vertical header connector designed for power-to-board applications. It features a dual-row configuration with six positions and a 4.2 mm pitch. The contacts are gold-plated copper, providing reliable conductivity in demanding environments. Rated for 12.5 A per contact, the connector operates within a temperature range of -40°C to +105°C. It utilizes a through-hole mounting style and includes a natural-colored housing.

Feature Summary

• Dual-row high-current design supporting up to 24 circuits
• Gold-plated contacts for enhanced corrosion resistance
• Vertical through-hole mounting for secure board attachment

Applications

• Industrial automation systems
• Power distribution units
• Alternative energy generation equipment

Procurement Notes

Verify the specific ordering suffix 'G0LF' to confirm gold plating and lead-free status. Ensure compatibility with mating sockets from the same Minitek Pwr 4.2 series. Confirm that the 4.2 mm pitch aligns with your PCB layout requirements. Check current availability as this item may be subject to factory special order constraints.

Selection Notes

Select this component when high current capacity at 12.5 A is required in a compact dual-row format. The 4.2 mm pitch offers robust spacing for power lines compared to smaller signal connectors. Consider the vertical orientation for direct board insertion. Verify thermal management needs given the 105°C maximum operating temperature rating.

Part Context

This connector belongs to the Minitek Pwr 4.2 series, which provides high-current interconnect solutions. The series supports various pin counts and configurations for industrial and transportation applications. It is engineered for durability in harsh environments including heavy equipment and rail mass transit sectors.

Replacement Considerations

Direct substitutes include other 6-position, 4.2mm pitch, gold-plated headers from the Minitek Pwr 4.2 family such as 10131319-06111RLF if tin plating is acceptable. Cross-reference mechanical dimensions and current ratings before substitution.
