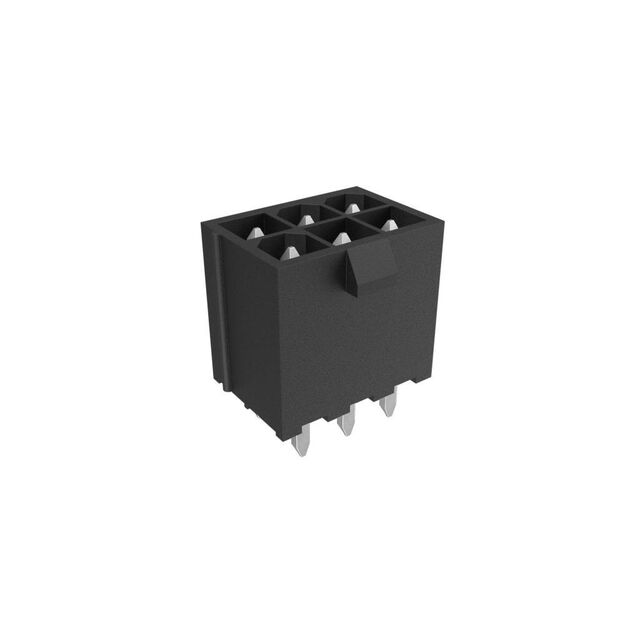

10131319-0612100LF

Description：CONN HEADER VERT 6POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:e9636fbe01f8 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 6POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-0612100LF

Overview

The Amphenol ICC (FCI) part number 10131319-0612100LF is a vertical header connector designed for through-hole mounting. It features six positions arranged in a single row with a pitch of 4.2mm. The component utilizes a male pin configuration and is constructed to support standard signal transmission applications within electronic assemblies.

Feature Summary

Vertical orientation for board-to-board or cable connections
Through-hole termination method for secure mechanical attachment
Male pin contact configuration for mating with female sockets

Applications

Server hardware interconnects
Data storage system modules
Communication equipment backplanes

Procurement Notes

Verify the specific suffix LF indicates lead-free compliance when sourcing. Confirm that the 4.2mm pitch matches the target PCB footprint design requirements. Ensure the vertical header style aligns with the assembly height constraints of the final enclosure.

Selection Notes

Select this component based on the required 6-position count and 4.2mm spacing. Evaluate the vertical form factor against available board space. Consider the through-hole mounting process compatibility with the manufacturing line capabilities.

Part Context

This connector belongs to the Amphenol ICC (FCI) portfolio, a division specializing in high-performance interconnect solutions. The brand provides components for data centers, networking, and industrial sectors, focusing on reliable signal integrity and mechanical durability.

Replacement Considerations

Cross-reference with other 6-position, 4.2mm pitch vertical headers from the same manufacturer family. Verify identical pin configuration and mounting style before substitution.
