10131319-0621200LF

Overview

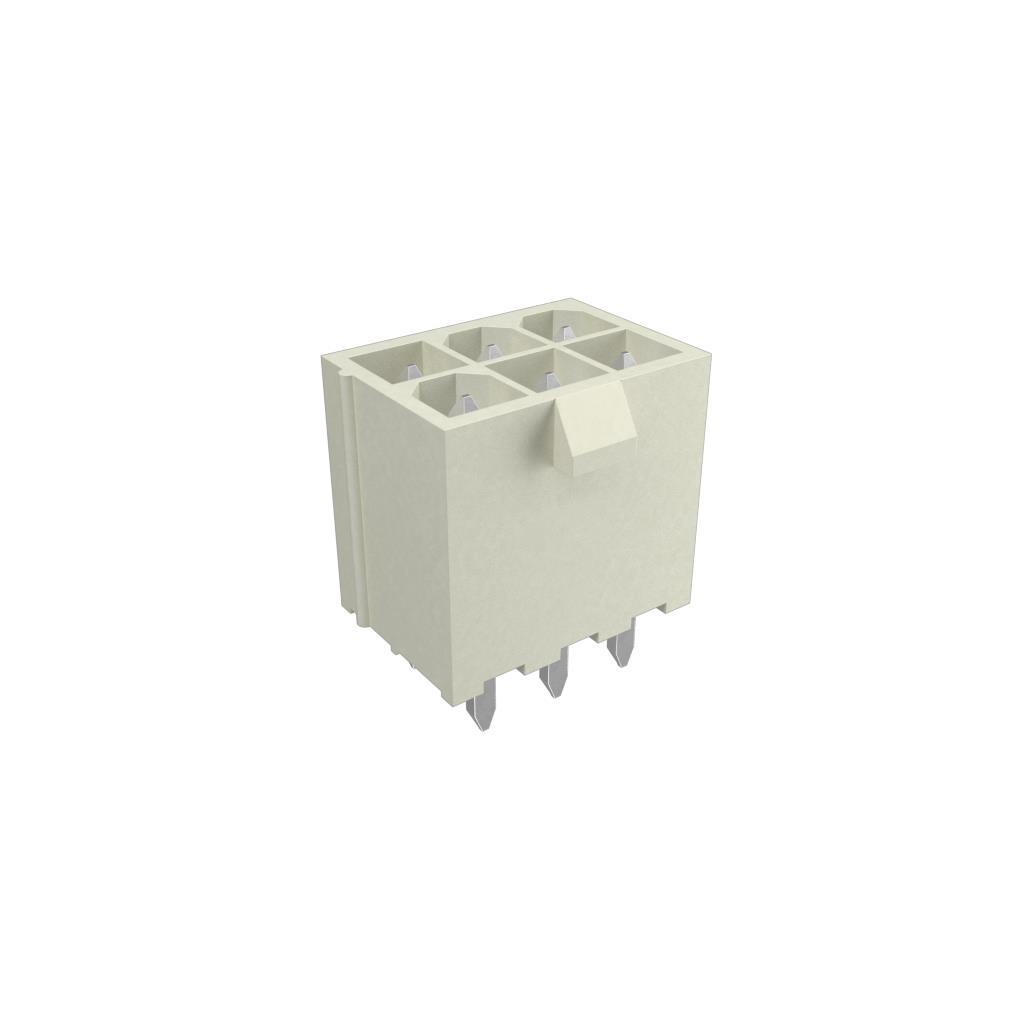

The Amphenol ICC (FCI) part number 10131319-0621200LF is a vertical power-to-board header connector belonging to the Minitek Power4.2 series. It features a 4.2 mm pitch and a dual-row configuration with six positions. The contacts are made of copper and finished with tin plating, supporting a current rating of 12.5 A. Designed for surface-mount termination, the housing is constructed from natural-colored liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The unit operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 1 GOhms.

Feature Summary

• High-current capability through robust tin-plated copper contacts rated at 12.5 A per position.
• Durable LCP insulation material ensures stability under thermal stress and meets UL94 V-0 standards.
• Vertical surface-mount design facilitates efficient board space utilization in power distribution applications.

Applications

• Power distribution modules in industrial equipment
• Server and storage system power interfaces
• Telecommunications infrastructure power boards

Procurement Notes

Verify the complete part number including suffixes to confirm specific packaging quantities and reel specifications. Confirm RoHS compliance status and lead times directly with the manufacturer or authorized distributors, as availability may vary by region. Ensure the ordering documentation matches the exact pin count and plating requirements specified for your circuit design.

Selection Notes

Select this component when a high-current vertical interface is required for power delivery. The 4.2 mm pitch allows for substantial contact cross-sections compared to smaller signal connectors. Verify that the PCB footprint accommodates the dual-row SMT termination style and that the operating environment remains within the specified -40°C to +105°C range.

Part Context

This connector is part of the Minitek Power4.2 family, designed specifically for power-to-board connections. The series offers various pin counts and row configurations to support diverse power distribution needs in compact electronic assemblies. It represents a standard solution for reliable electrical interconnection in demanding industrial and commercial environments.

Replacement Considerations

Direct substitutes must match the 4.2 mm pitch, 6-position count, dual-row layout, and vertical orientation. Ensure any alternative maintains equivalent current ratings and thermal characteristics. Cross-reference with other Minitek Power4.2 variants if different pin counts are acceptable.
