Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

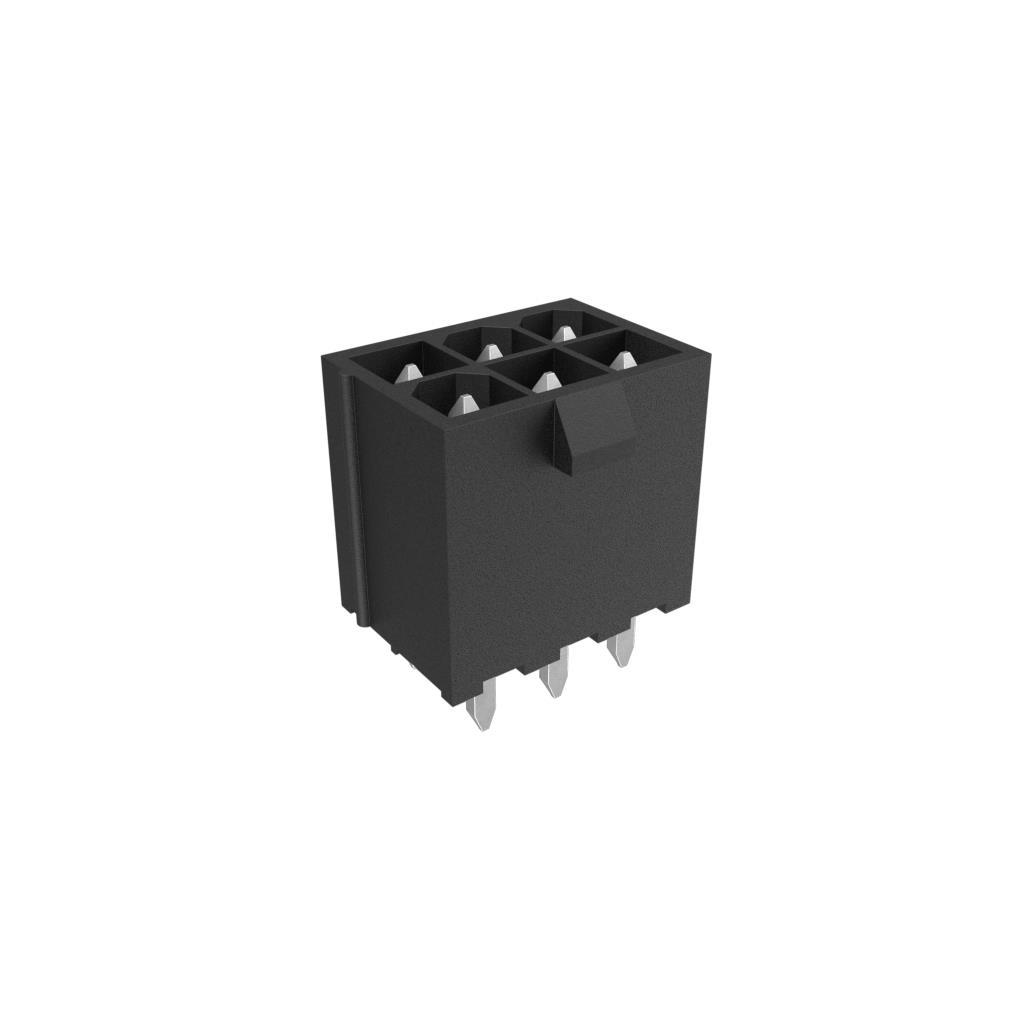

The Amphenol ICC (FCI) part number 10131319-0622100LF is a vertical power header belonging to the MinitekPwr 4.2 series. It features a 4.2 mm pitch and a 2-row configuration with 6 positions. The connector utilizes copper contacts with gold plating for reliable electrical performance. Designed for through-hole termination, it supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. The housing is constructed from black nylon 6.6 material, ensuring mechanical stability and insulation resistance of 1 GOhms.
Feature Summary
- Vertical board-to-board power interconnect design
- Gold-plated copper contacts for corrosion resistance
- Through-hole solder termination method
Applications
- Power distribution in industrial equipment
- Server and storage system power interfaces
- Communication infrastructure power connections
Procurement Notes
Verify the specific suffix against official manufacturer documentation to confirm contact plating and packaging details. Ensure compatibility with mating receptacles regarding row alignment and pin count. Confirm that the through-hole footprint matches the target PCB layout. Check for RoHS compliance status if required by project specifications. Validate thermal ratings against operational environment requirements.
Selection Notes
Select this component when a low-profile, high-current vertical connection is required. The 4.2 mm pitch accommodates higher current loads compared to smaller pitches. Verify that the 6-position count meets circuit requirements. Consider the vertical orientation for space-constrained boards where edge connectors are not feasible. Ensure mating components match the MinitekPwr 4.2 series specifications.
Part Context
This connector is part of the MinitekPwr 4.2 family, designed for power delivery applications. The series offers various position counts and orientations. It serves as a robust solution for distributing power between boards in dense electronic assemblies. The design emphasizes reliability and ease of assembly in industrial and commercial environments.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 2-row, 6-position vertical configuration. Verify identical current ratings and termination methods. Cross-reference with other manufacturers offering similar power header solutions. Ensure mechanical dimensions and locking features are compatible.
