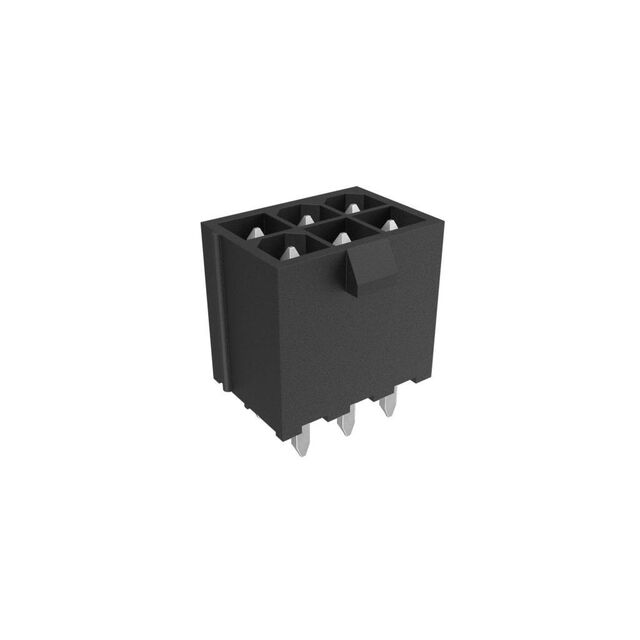

10131319-062220ULF

$0.59

Description：10131319-062220ULF-MTK 4.2 DR 06
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:2a2e763f829a Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10131319-062220ULF-MTK 4.2 DR 06
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-062220ULF

Overview

The 10131319-062220ULF is a Minitek Pwr 4.2 Higher Current Connector (HCC) header manufactured by Amphenol ICC (FCI). It features a dual-row configuration with six positions and a 0.165-inch (4.20mm) mating pitch. Designed for power-dense applications, the connector supports current ratings up to 13.5A per contact. The assembly utilizes male pin contacts with tin post-plating on copper alloy materials. The housing is constructed from liquid crystal polymer (LCP), ensuring stability within an operating temperature range of -40°C to 105°C.

Feature Summary

Engineered for high-current density environments requiring robust power delivery
Incorporates a dual-row header design for efficient board-to-board connectivity
Utilizes LCP insulation material for enhanced thermal and chemical resistance

Applications

Power-dense electronic systems
Industrial equipment power distribution
High-performance computing hardware

Procurement Notes

Verify component authenticity through authorized Amphenol distributors or certified partners. Confirm that the specific UL certification markings align with regional safety regulations for your target market. Ensure storage conditions maintain the integrity of the LCP housing and tin-plated contacts prior to assembly.

Selection Notes

Select this model when high current capacity per contact is critical for the application. The 4.20mm pitch allows for wider spacing compared to standard signal headers, reducing arcing risks. Verify that the mechanical footprint and dual-row alignment match the PCB layout requirements for optimal solder joint reliability.

Part Context

This component belongs to the Minitek Pwr 4.2 HCC series, which focuses on delivering higher current capabilities in compact form factors. The series is designed to replace traditional connectors in applications where space constraints limit the use of larger industrial-grade power connectors while maintaining necessary electrical performance standards.
