Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

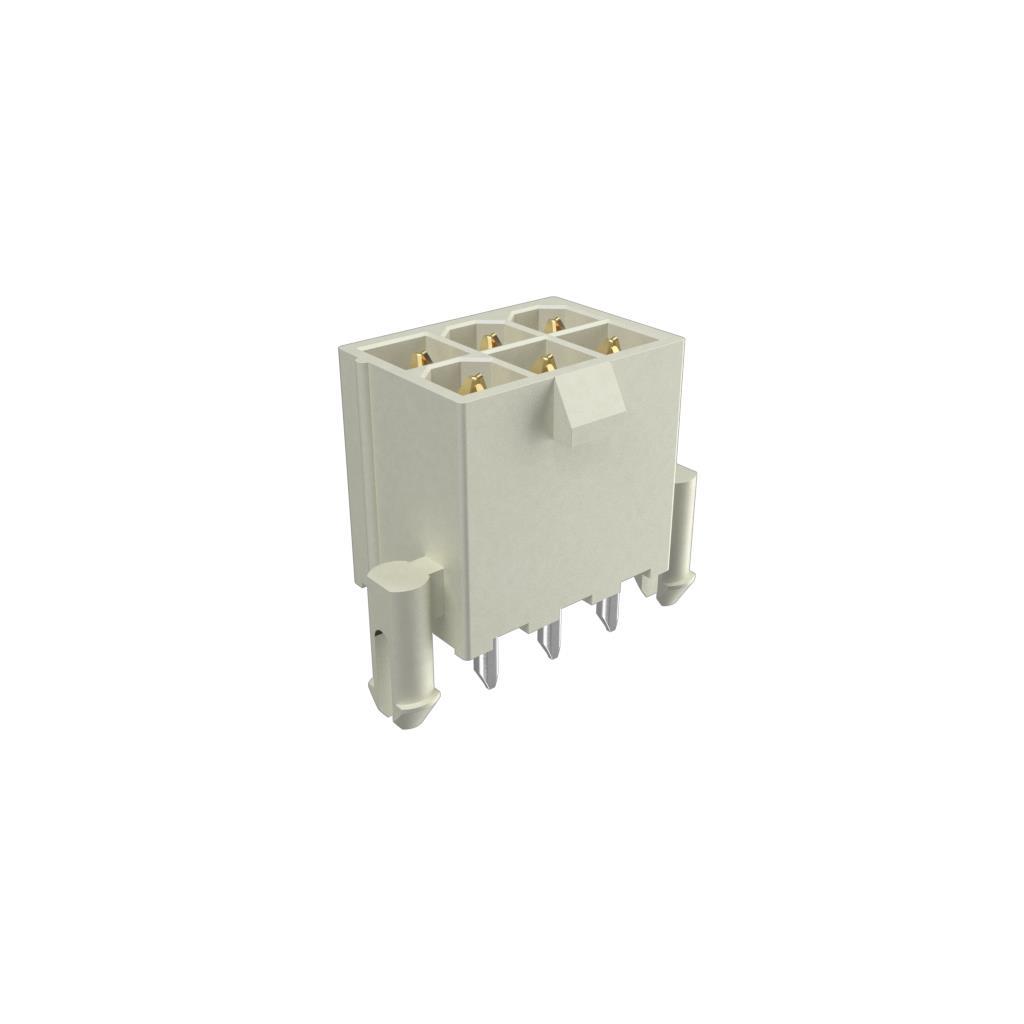

The Amphenol ICC (FCI) part number 10131319-064110PLF is a Minitek Power4.2 series power-to-board connector header. It features a dual-row vertical configuration with 6 positions and a 4.2 mm pitch. The contacts are copper-based with 30-micron gold plating, rated for 12.5 A current. Operating temperature ranges from -40°C to +105°C, with an insulation resistance of 1 GOhm.
Feature Summary
- Dual-row vertical header design for high-density power distribution
- Gold-plated contacts ensure reliable conductivity and corrosion resistance
- Minitek Power4.2 series architecture supports robust board-to-board connections
Applications
- Industrial equipment power distribution
- Telecommunications infrastructure boards
- Server and storage system power interfaces
Procurement Notes
Verify the specific ordering suffix PLF against official Amphenol documentation to confirm contact plating thickness and packaging type. Ensure compatibility with mating receptacles within the Minitek Power4.2 family. Confirm that the 6-position variant meets the required current load and thermal management specifications for the target application environment.
Selection Notes
Select this component when a low-profile, high-current vertical interconnect is required. The 4.2 mm pitch allows for significant current carrying capacity relative to footprint. Verify that the PCB layout accommodates the dual-row spacing and that the natural housing color meets aesthetic or identification requirements for the assembly.
Part Context
This connector belongs to the Minitek Power4.2HCC line, designed for demanding power applications. It complements other variants in the series by offering a specific pin count and plating option. The product falls under the broader category of power connectors manufactured by Amphenol FCI for industrial and commercial electronics.
Replacement Considerations
Direct substitutes include other 10131319-xxxxxxPLF variants with matching 6-position counts and gold plating. Cross-reference with 10131319-061110RLF if tin plating is acceptable. Ensure mechanical dimensions and mating interface remain identical before substitution.
