Product Detailed Parameters
- Description：CONN HEADER VERT 8POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

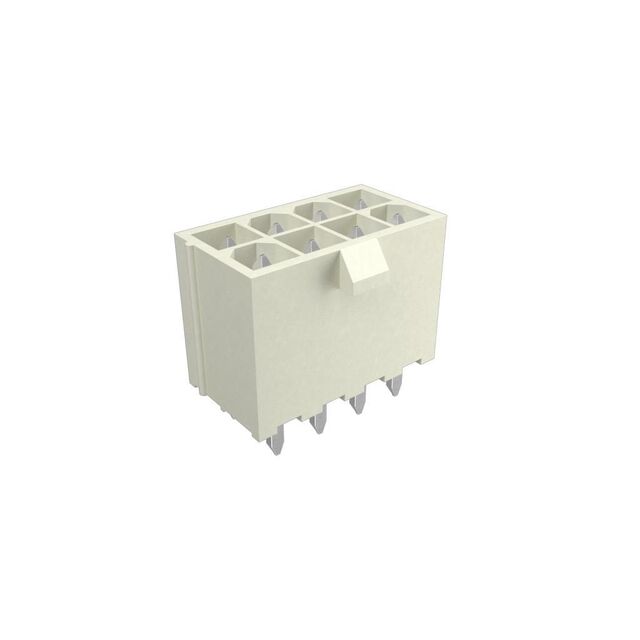

The Amphenol ICC (FCI) part number 10131319-0811100LF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features an 8-position configuration with a 4.2 mm pitch and a 12.5 A current rating per contact. The connector utilizes copper contacts with tin plating, housed in a natural-colored insulator. It operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 1 GOhms.
Feature Summary
- Double-row vertical header design for high-density power distribution
- Robust copper contacts with tin plating for reliable conductivity
- Natural-colored housing compatible with standard PCB assembly processes
Applications
- Server and data storage power distribution systems
- Telecommunications equipment power interfaces
- Industrial instrumentation power connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm contact plating and pin count details. Confirm availability status directly with authorized distributors as supply conditions may vary. Ensure the selected variant matches the required environmental operating temperatures and current ratings for the target application.
Selection Notes
Select this component when a double-row vertical power header is required for board-level power delivery. The 4.2 mm pitch supports higher current capacities compared to smaller pitch alternatives. Verify that the natural housing color and tin-plated contacts align with the system's corrosion resistance and mating cycle requirements.
Part Context
This component belongs to the MinitekPwr 4.2 series, a line of power connectors engineered by Amphenol FCI. The series is characterized by its robust construction and suitability for demanding industrial and commercial environments. It serves as a critical interface for transferring electrical power between boards in complex electronic assemblies.
Replacement Considerations
Cross-reference with other Minitek Power4.2 series headers for alternative pin counts or plating options. Verify mechanical compatibility and electrical specifications before substituting with generic equivalents.
